A perfect solution specifically designed for use on yachts, ships, water skis, or water systems with ballast tank structures, allowing for quick filling or emptying of ballast tanks when inverted; This pump can pump fresh or seawater, and its sturdy design makes it highly efficient and output, suitable for intermittent use; The pump is reversible, available with or without reversing polarity switch to fill or empty ballast tanks, and has a built-in thermal overload function to provide additional protection.
MORE FEATURES & BENEFITS

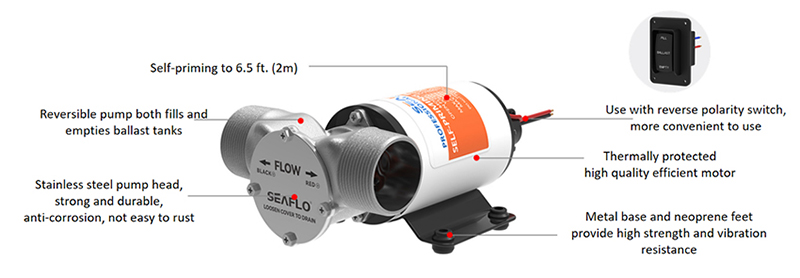

• Reversible pump both fills and empties ballast tanks

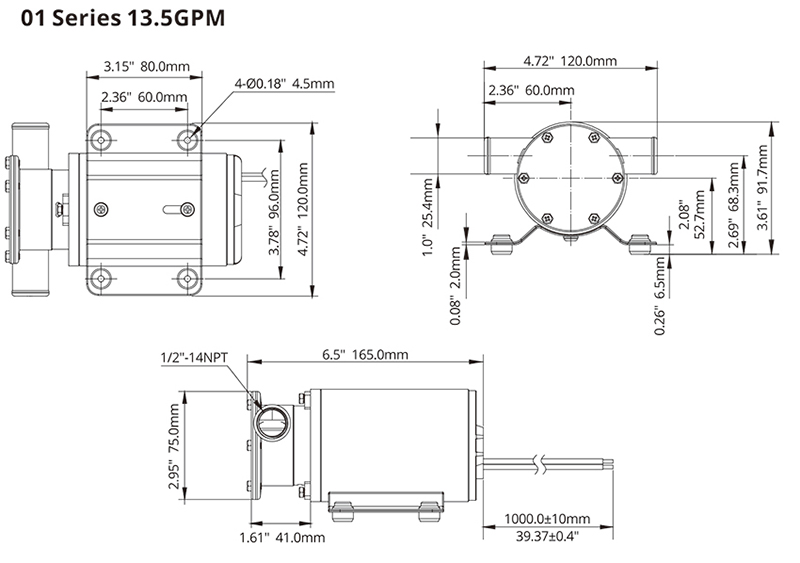

• 13.5 GPM / 50 LPM flow rate (01 series),

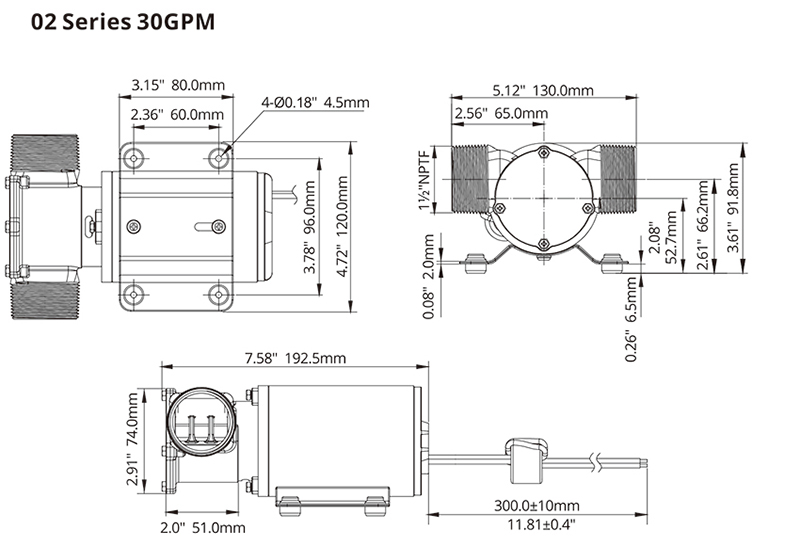

30 GPM / 113 LPM flow rate (02 series)
• Self-priming to 6.5 ft. (2m)

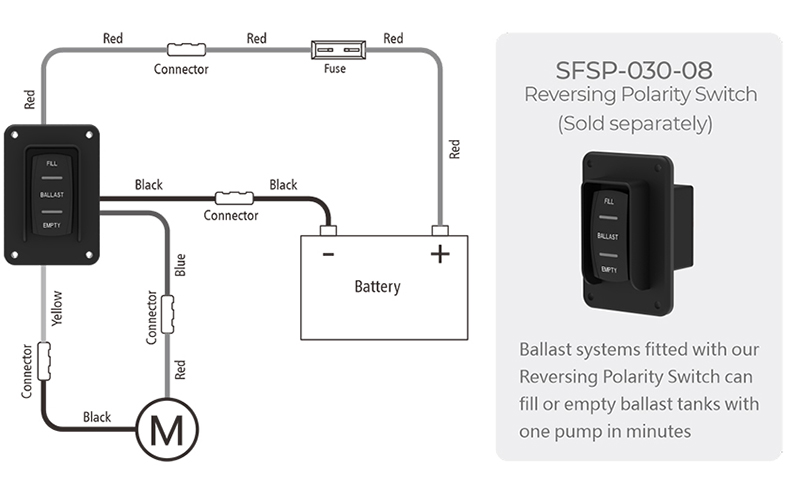

• Use with Reversing Polarity Switch to fill or empty ballast tanks
• High performance and output of intermittent work cycles
• Improved impeller designed for run dry for short duration
•Built in thermal overload protection, automatically reset after cooling
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow |
Amp（A） |
Ports |
| SFSP1-050-003-01 | 12V | 13.5/50 | 14A | 1/2″NPT |
| SFSP2-050-003-01 | 24V | 13.5/50 | 7A | 1/2″NPT |
|
SFSP1-113-009-02 |
12V | 30/113 | 20A | 1-1/2”NPTF |
| SFSP2-113-009-02 |
24V |
30/113 | 10A | 1-1/2”NPTF |
