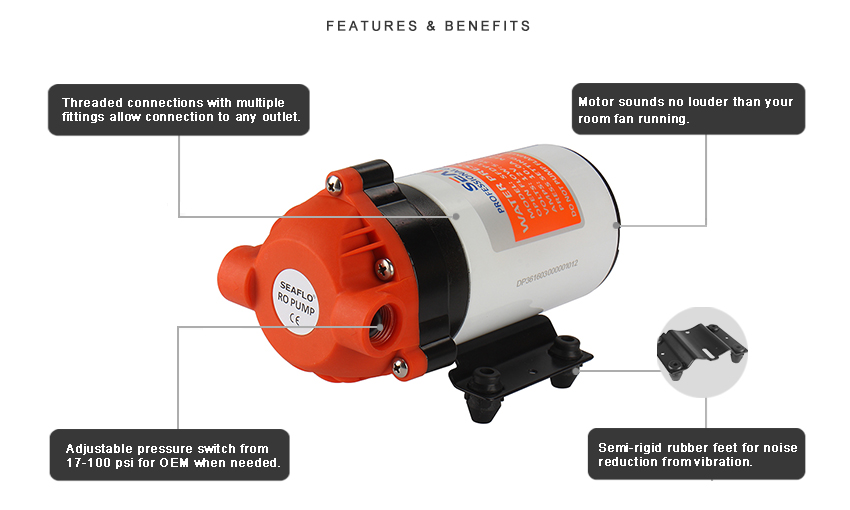

MORE FEATURES & BENEFITS
• Adjustable pressure switch
• Easy Connecting
• Quiet Operation
• Semi-rigid rubber feet for noise reduction from vibration.
• 2 Year Warranty.
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow |
Max Draw |
Shut-off Pressure |
| SFDP1-015-120-36 | 12V | 1.5/5.5 | 10.0A | 120/8.3 |
| SFDP2-015-120-36 | 24V | 1.5/5.5 | 5.0A | 120/8.3 |
| SFDP1-018-120-36 | 12V | 1.8/7.0 | 12.0A | 120/8.3 |
| SFDP2-018-120-36 | 24V | 1.8/7.0 | 6.0A | 120/8.3 |

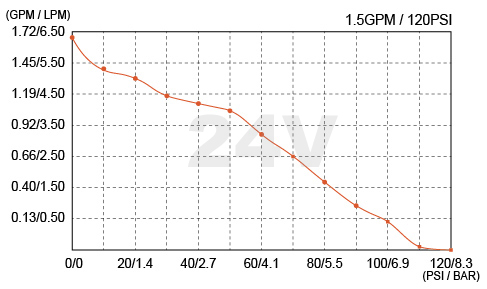

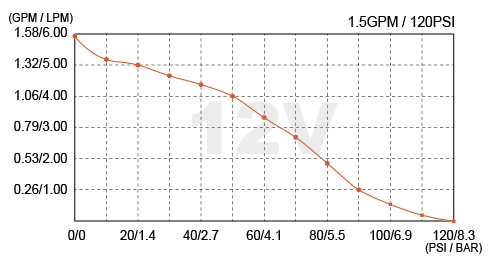

1.5GPM / 120PSI
|
PRESSURE |
12V |
24V |
|||||
|
FLOW |
CURRENT |
FLOW |
CURRENT |
||||
|
PSI |
BAR |
GPM |
LPM |
AMPS |
GPM |
LPM |
AMPS |
| 0 | 0 | 1.56 | 5.90 | 2.37 | 1.64 | 6.20 | 1.18 |
| 10 | 0.69 | 1.37 | 5.20 | 3.63 | 1.40 | 5.30 | 1.26 |
| 20 | 1.38 | 1.32 | 5.00 | 4.28 | 1.32 | 5.00 | 1.32 |
| 30 | 2.07 | 1.32 | 4.60 | 4.85 | 1.16 | 4.40 | 1.40 |
| 40 | 2.76 | 1.16 | 4.40 | 5.19 | 1.11 | 4.20 | 1.44 |
| 50 | 3.45 | 1.06 | 4.00 | 5.69 | 1.06 | 4.00 | 1.49 |
| 60 | 4.14 | 0.90 | 3.40 | 6.08 | 0.85 | 3.20 | 1.53 |
| 70 | 4.83 | 0.69 | 2.60 | 6.40 | 0.66 | 2.50 | 1.58 |
| 80 | 5.52 | 0.48 | 1.80 | 6.88 | 0.45 | 1.70 | 1.63 |
| 90 | 6.21 | 0.26 | 1.00 | 7.38 | 0.21 | 0.80 | 1.66 |
| 100 | 6.90 | 0.13 | 0.50 | 7.45 | 0.11 | 0.40 | 1.73 |
| 110 | 7.59 | 0.04 | 0.16 | 7.50 | 0.04 | 0.14 | 1.79 |
| 120 | 8.28 | 0 | 0 | 7.80 | 0 | 0 | 1.84 |

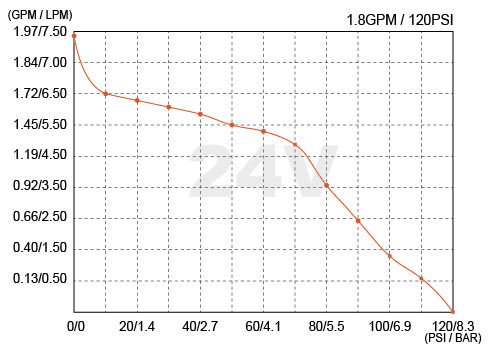

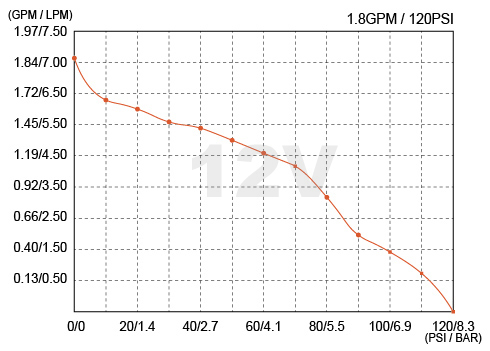

1.8GPM / 120PSI
|
PRESSURE |
12V |
24V |
|||||
|
FLOW |
CURRENT |
FLOW |
CURRENT |
||||
|
PSI |
BAR |
GPM |
LPM |
AMPS |
GPM |
LPM |
AMPS |
| 0 | 0 | 1.88 | 7.10 | 2.32 | 1.96 | 7.40 | 1.68 |
| 10 | 0.69 | 1.65 | 6.25 | 3.48 | 1.72 | 6.50 | 1.76 |
| 20 | 1.38 | 1.59 | 6.00 | 4.66 | 1.66 | 6.30 | 2.35 |
| 30 | 2.07 | 1.48 | 5.60 | 5.43 | 1.61 | 6.10 | 2.77 |
| 40 | 2.76 | 1.43 | 5.40 | 5.92 | 1.53 | 5.80 | 2.94 |
| 50 | 3.45 | 1.32 | 5.00 | 6.44 | 1.45 | 5.50 | 3.24 |
| 60 | 4.14 | 1.22 | 4.60 | 7.01 | 1.37 | 5.20 | 3.62 |
| 70 | 4.83 | 1.11 | 4.20 | 7.50 | 1.27 | 4.80 | 3.88 |
| 80 | 5.52 | 0.85 | 3.20 | 8.00 | 0.95 | 3.60 | 4.11 |
| 90 | 6.21 | 0.53 | 2.00 | 8.61 | 0.63 | 2.40 | 4.45 |
| 100 | 6.90 | 0.37 | 1.40 | 9.18 | 0.32 | 1.20 | 4.73 |
| 110 | 7.59 | 0.21 | 0.80 | 9.50 | 0.16 | 0.60 | 4.82 |
| 120 | 8.28 | 0 | 0 | 10.04 | 0 | 0 | 5.14 |
SHIPPING INFORMATION
|
Unit Weight |
4.94 lbs （2.24 kg） |
|
Selling Unit Size (L x W x H) |
11.34" x 4.65" x 4.80" （28.8 x 11.8 x 12 cm） |
|
Selling Unit Weight |
5.16 lbs （2.55 kg） |
|
Master Carton Size (L x W x H) |
54.02" x 11.81" x 14.57" (60 x 27.5 x 29.2 cm) |
|
Master Carton Qty |
8 pcs |
|
Master Carton Weight |
kg |
| Diaphragm pump parameters | |
| Diaphragm pump parameters Voltage | 12V/24V |
| Diaphragm pump parameters Open Flow | 1.3-1.4GPM / 5.0-5.1LPM |
