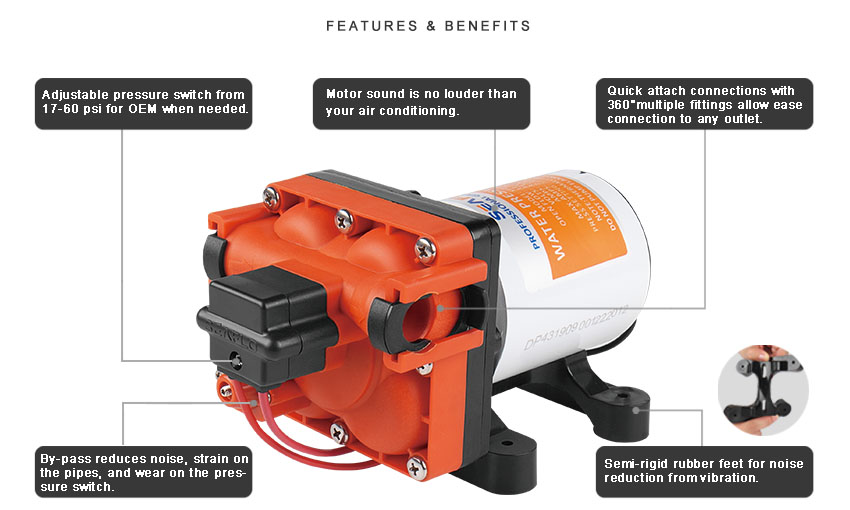

MORE FEATURES & BENEFITS
• Up to 3.0 GPM
• Continuous duty
• Quick-Connect fittings
• Self priming
• Run dry safe
• Quiet operation
• On-demand use
• Industry Standard mounting pattern
• Completely rubber mounting-base Internal
• bypass technology reduces cycling
• 16 AWG, 9.4"(23.8 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-030-055-43 | 12V | 3.0 / 11.3 | 6.86 A | 55 / 3.8 |
| SFDP2-030-055-43 | 24V | 3.0 / 11.3 | 3.48 A | 55 / 3.8 |
| SFDPA1-030-055-43 | 115V | 3.0 / 11.3 | 1.10 A | 55 / 3.8 |
| SFDPA2-030-055-43 | 220V | 3.0 / 11.3 | 0.50 A | 55 / 3.8 |
3.0GPM / 55PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 2.80 | 10.60 | 2.80 | 2.80 | 10.60 | 1.30 |
| 10 | 0.69 | 2.17 | 8.20 | 3.93 | 2.22 | 8.40 | 1.98 |
| 20 | 1.38 | 1.90 | 7.20 | 4.63 | 1.90 | 7.20 | 2.37 |
| 30 | 2.07 | 1.64 | 6.20 | 5.36 | 1.64 | 6.20 | 2.76 |
| 40 | 2.76 | 1.43 | 5.40 | 6.00 | 1.37 | 5.20 | 3.11 |
| 50 | 3.45 | 1.43 | 4.60 | 6.60 | 1.16 | 4.40 | 3.38 |
| 55 | 3.80 | 0 | 0 | 6.86 | 0 | 0 | 3.48 |
SHIPPING INFORMATION
Unit Weight | 4.34 lbs (1.97 kg) |
Selling Unit Size (L x W x H) | 10.39" x 5.63" x 5.12" (26.4 x 14.3 x 13 cm) |
Selling Unit Weight | 5.09 lbs (2.31 kg) |
Master Carton Size (L x W x H) | 23.62" x 11.02" x 11.61" (60 x 28 x 29.5 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 41 lbs (18.6 kg) |
Master Carton Volume | 0.05 m³ |
