FEATURES & BENEFITS
MORE FEATURES & BENEFITS
• Continuous duty
• Can run dry
• Self-Priming
• Quite operation
• Long Life Pressure Switch
• Waterproof grade IPX54

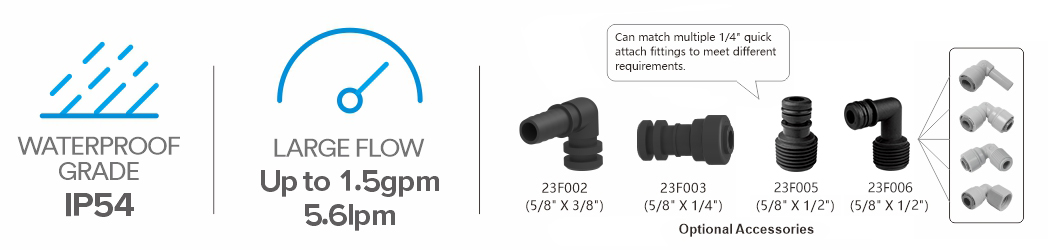

• Multiple ports available
• On-demand pressure switch

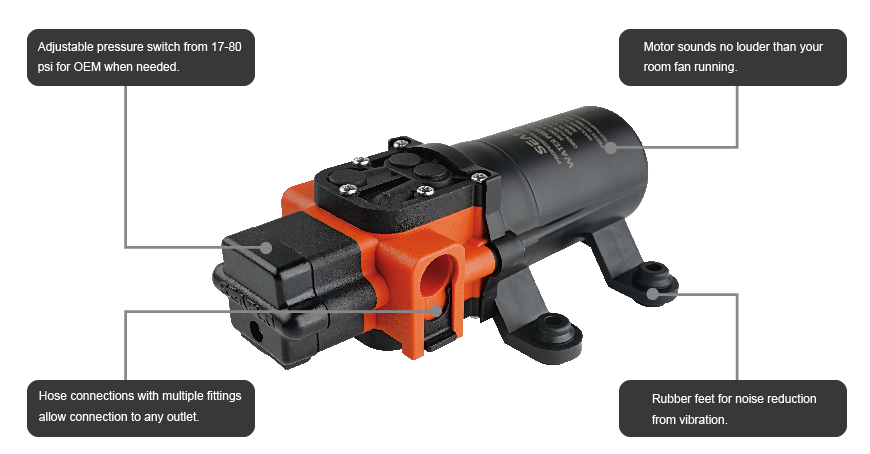

• Adjustable pressure setting
• Capable of supplying 1-2 fixtures
• By pass technology reduces cycling

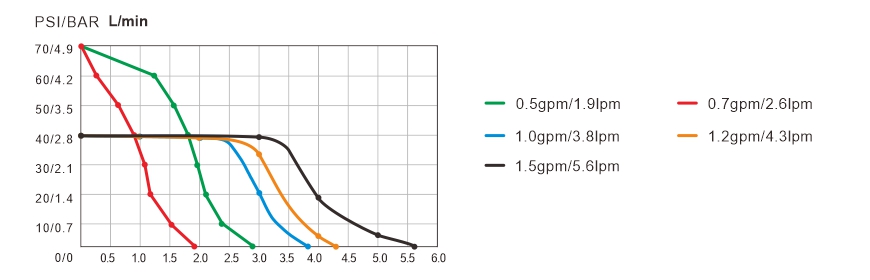

STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-005-070-23C | 12V | 0.5/1.9 | 1.8A | 70/4.8 |
| SFDP2-005-070-23C | 24V | 0.5/1.9 | 1.0A | 70/4.8 |
| SFDP1-007-070-23C | 12V | 0.7/2.6 | 2.5A | 70/4.8 |
| SFDP2-007-070-23C | 24V | 0.7/2.6 | 1.2A | 70/4.8 |
| SFDP1-010-040-23C | 12V | 1.0/3.8 | 3.8A | 40/2.8 |
| SFDP2-010-040-23C | 24V | 1.0/3.8 | 2.0A | 40/2.8 |
| SFDP1-012-040-23C | 12V | 1.2/4.3 | 4.2A | 40/2.8 |
| SFDP2-012-040-23C | 24V | 1.2/4.3 | 2.2A | 40/2.8 |
| SFDP1-015-040-23C | 12V | 1.5/5.6 | 4.5A | 40/2.8 |
| SFDP2-015-040-23C | 24V | 1.5/5.6 | 2.5A | 40/2.8 |
SHIPPING INFORMATION
Unit Weight | 1.32 lbs（0.6 kg） |
Selling Unit Size (L x W x H) | 7.09"x 4.13 "x 2.76" （18.0 x 10.5 x 7 cm） |
Selling Unit Weight | 1.54 lbs（0.7 kg） |
Master Carton Size (L x W x H) | 15.16"x 13.19 "x 14.96" （38.5 x 33.5 x 38 cm） |
Master Carton Qty | 30 pcs |
Master Carton Weight | 45.19 lbs（20.5 kg） |
Master Carton Volume | 0.049 m³ |
