FEATURES & BENEFITS
MORE FEATURES & BENEFITS
• Open flow up to 1.5gpm/5.6lpm
• Dry run capability
• Max Self-priming up to 5 feet/1.5m
• Waterproof grade IP54 with extra cover
• On-demand long life pressure switch
• Configurable reflux function
• Adapt to a variety of scenarios

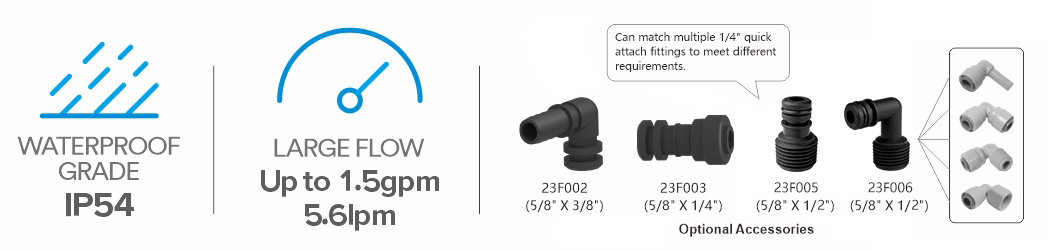

• Multiple connector options
• By pass technology reduces cycling
• Extra button for easy control
• Ignition protected, CE, RoHS

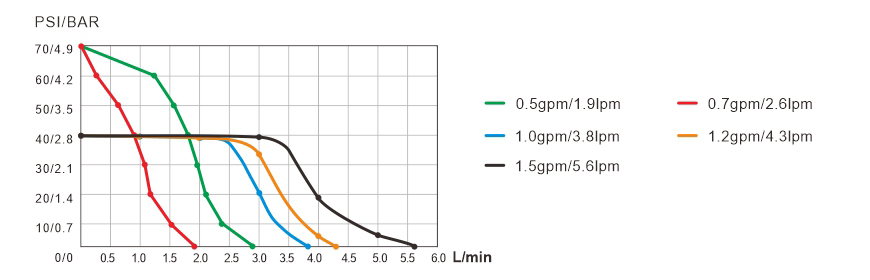

STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDPAX-005-070-23B | 100-240V | 0.5/1.89 | 1.8A | 70/4.8 |
| SFDPAX-007-070-23B | 100-240V | 0.7/2.65 | 2.2A | 70/4.8 |
| SFDPAX-010-040-23B | 100-240V | 1.0/3.8 | 2.5A | 40/2.8 |
| SFDPAX-012-040-23B | 100-240V | 1.2/4.5 | 2.8A | 40/2.8 |
| SFDPAX-015-040-23B | 100-240V | 1.5/5.6 | 3.0A | 40/2.8 |
SHIPPING INFORMATION
Unit Weight | 1.65 lbs（0.75 kg） |
Selling Unit Size (L x W x H) | 9.84"x 4.65 "x 2.76" （25.0 x 11.8 x 7 cm） |
Selling Unit Weight | 1.87 lbs（0.85 kg） |
Master Carton Size (L x W x H) | 20.67"x 19.49 "x 9.45" （52.5 x 49.5 x 24 cm） |
Master Carton Qty | 24 pcs |
Master Carton Weight | 45.19 lbs（20.5 kg） |
Master Carton Volume | 0.062 m³ |
