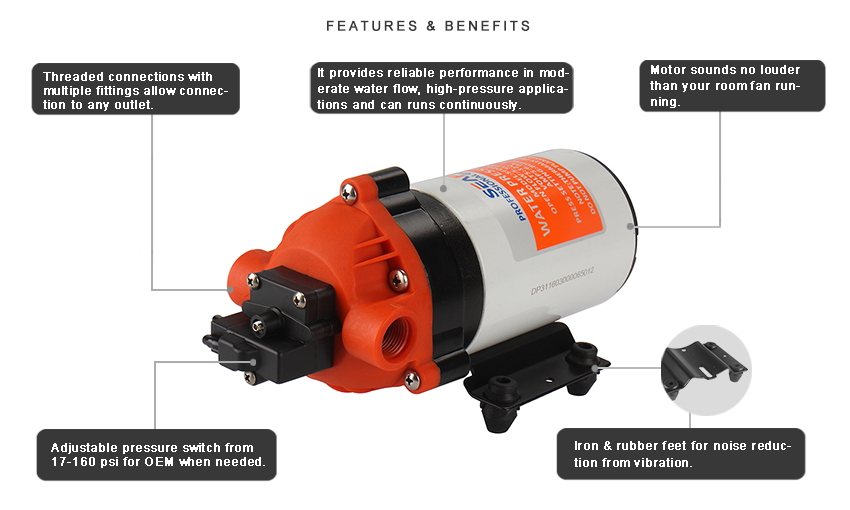

MORE FEATURES & BENEFITS
• Adjustable pressure switch
• Continuous Duty & Run dry safe
• Self priming
• Continuous duty
• Quiet operation
• Industry Standard mounting pattern.
• 16AWG, 4.5" long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-015-080-31 | 12V | 1.5 / 5.5 | 8.0 | 80 / 5.5 |
| SFDP2-015-080-31 | 24V | 1.5 / 5.5 | 4.5 | 80 / 5.5 |
| SFDP1-018-080-31 | 12V | 1.8 / 7.0 | 9.0 | 80 / 5.5 |
| SFDP2-018-080-31 | 24V | 1.8 / 7.0 | 4.5 | 80 / 5.5 |

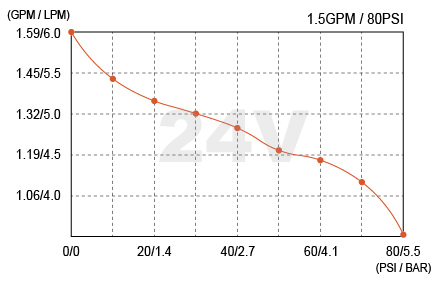

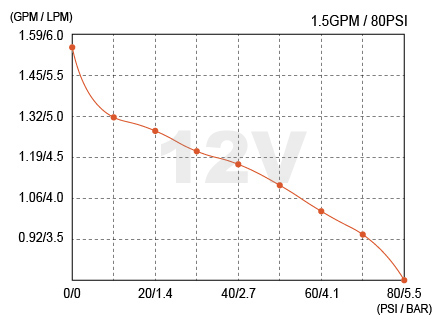

1.5GPM / 80PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
0 | 0 | 1.53 | 5.80 | 2.74 | 1.59 | 6.00 | 1.53 |
10 | 0.69 | 1.32 | 5.00 | 3.75 | 1.43 | 5.40 | 2.15 |
20 | 1.38 | 1.27 | 4.80 | 4.56 | 1.37 | 5.20 | 2.40 |
30 | 2.07 | 1.22 | 4.60 | 5.20 | 1.32 | 5.00 | 2.63 |
40 | 2.76 | 1.16 | 4.40 | 5.78 | 1.27 | 4.80 | 2.98 |
50 | 3.45 | 1.11 | 4.20 | 6.32 | 1.22 | 4.60 | 3.26 |
60 | 4.14 | 1.00 | 3.80 | 6.63 | 1.16 | 4.40 | 3.61 |
70 | 4.83 | 0.95 | 3.60 | 7.11 | 1.11 | 4.20 | 3.85 |
80 | 5.52 | 0 | 0 | 7.55 | 0 | 0 | 4.06 |

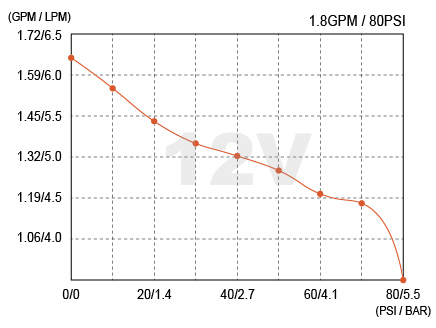

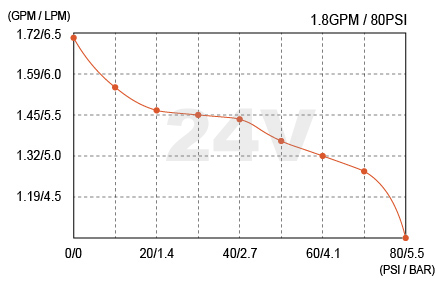

1.8GPM / 80PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 1.64 | 6.20 | 2.68 | 1.69 | 6.40 | 1.58 |
| 10 | 0.69 | 1.53 | 5.80 | 4.22 | 1.53 | 5.80 | 2.24 |
| 20 | 1.38 | 1.43 | 5.40 | 5.04 | 1.48 | 5.60 | 2.60 |
| 30 | 2.07 | 1.37 | 5.20 | 5.79 | 1.45 | 5.50 | 3.00 |
| 40 | 2.76 | 1.32 | 5.00 | 6.67 | 1.43 | 5.40 | 3.38 |
| 50 | 3.45 | 1.27 | 4.80 | 7.37 | 1.37 | 5.20 | 3.64 |
| 60 | 4.14 | 1.22 | 4.60 | 8.00 | 1.32 | 5.00 | 3.91 |
| 70 | 4.83 | 1.16 | 4.40 | 8.60 | 1.27 | 4.80 | 4.24 |
| 80 | 5.52 | 0 | 0 | 9.17 | 0 | 0 | 4.50 |
SHIPPING INFORMATION
| Unit Weight | 5.64 lbs (2.56 kg) |
Selling Unit Size (L x W x H) | 11.39"x 4.64"x 4.72" (28.8 x 11.8 x 12 cm) |
Selling Unit Weight | 5.13 lbs (2.33 kg) |
Master Carton Size (L x W x H) | 24.02"x 11.81"x 14.57" (61 x 30 x 37 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 47.41 lbs (21.5 kg) |
