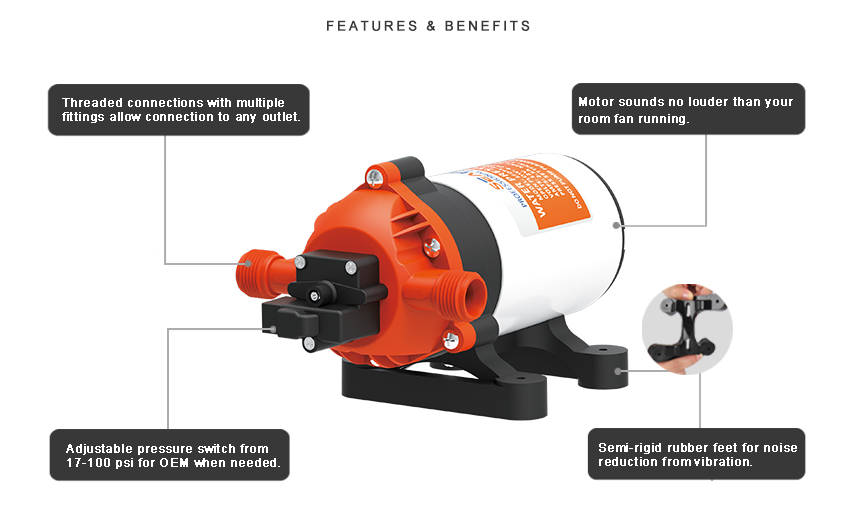

MORE FEATURES & BENEFITS
• On-demand use
• Adjustable pressure switch
• Continuous Duty & Run dry safe
• Self priming
• Industry standard mounting pattern
• 2 Year Warranty
• 18AWG, 4.5" long Leads
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-022-070-34 | 12V | 2.2 / 8.3 | 7.5A | 70 / 4.8 |
| SFDP2-022-070-34 | 24V | 2.2 / 8.3 | 4.0A | 70 / 4.8 |
| SFDP1-016-100-34 | 12V | 1.6 / 6.0 | 6.0A | 100 / 6.9 |
| SFDP2-016-100-34 | 24V | 1.6 / 6.0 | 4.0A | 100 / 6.9 |

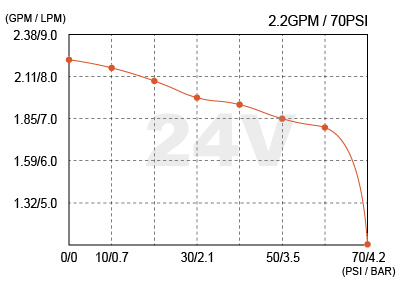

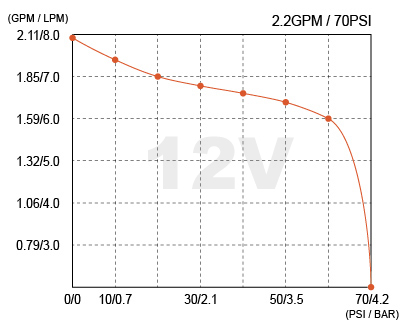

2.2GPM / 70PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
0 | 0 | 2.09 | 7.92 | 4.40 | 2.23 | 8.44 | 3.23 |
10 | 0.69 | 1.96 | 7.40 | 5.92 | 2.17 | 8.20 | 3.36 |
20 | 1.38 | 1.85 | 7.00 | 6.63 | 2.09 | 7.90 | 3.71 |
30 | 2.07 | 1.80 | 6.80 | 7.54 | 1.98 | 7.50 | 4.16 |
40 | 2.72 | 1.74 | 6.60 | 8.32 | 1.93 | 7.30 | 4.49 |
50 | 3.45 | 1.69 | 6.40 | 9.18 | 1.85 | 7.00 | 4.90 |
60 | 4.14 | 1.59 | 6.00 | 10 | 1.80 | 6.80 | 5.35 |
70 | 4.83 | 0 | 0 | 10.85 | 0 | 0 | 5.80 |

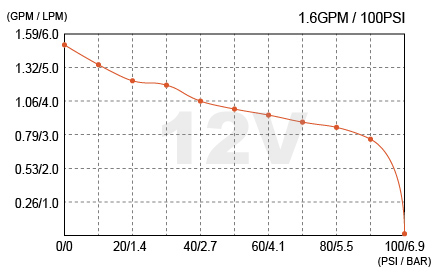

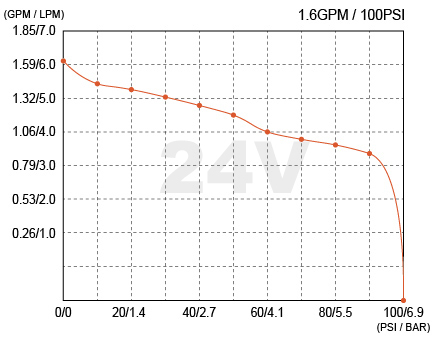

1.6GPM / 100PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 1.51 | 5.70 | 3.18 | 1.61 | 6.10 | 1.36 |
| 10 | 0.69 | 1.35 | 5.10 | 3.51 | 1.43 | 5.40 | 1.84 |
| 20 | 1.38 | 1.24 | 4.70 | 4.14 | 1.37 | 5.20 | 2.22 |
| 30 | 2.07 | 1.16 | 4.40 | 4.90 | 1.32 | 5.00 | 2.60 |
| 40 | 2.72 | 1.06 | 4.00 | 5.51 | 1.27 | 4.80 | 2.87 |
| 50 | 3.45 | 1.00 | 3.80 | 6.13 | 1.19 | 4.50 | 3.13 |
| 60 | 4.14 | 0.95 | 3.60 | 6.50 | 1.06 | 4.00 | 3.34 |
| 70 | 4.83 | 0.90 | 3.40 | 6.97 | 1.00 | 3.80 | 3.51 |
| 80 | 5.52 | 0.85 | 3.20 | 7.29 | 0.95 | 3.60 | 3.74 |
| 90 | 6.21 | 0.77 | 2.90 | 7.58 | 0.90 | 3.40 | 4.01 |
| 100 | 6.90 | 0 | 0 | 7.81 | 0 | 0 | 4.19 |
SHIPPING INFORMATION
Unit Pump Weight | 5.14 lbs (2.16 kg) |
Selling Unit Size (L x W x H) | 10.98"x 5.63"x 4.41" (27.9 x 14.3 x 11.2 cm) |
Selling Unit Weight | 5.85 lbs (2.66 kg) |
Master Carton Size (L x W x H) | "23.42 x 11.5" x 9.84" (59.5 x 29.2 x 25 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 46.97 lbs (21.3 kg) |
