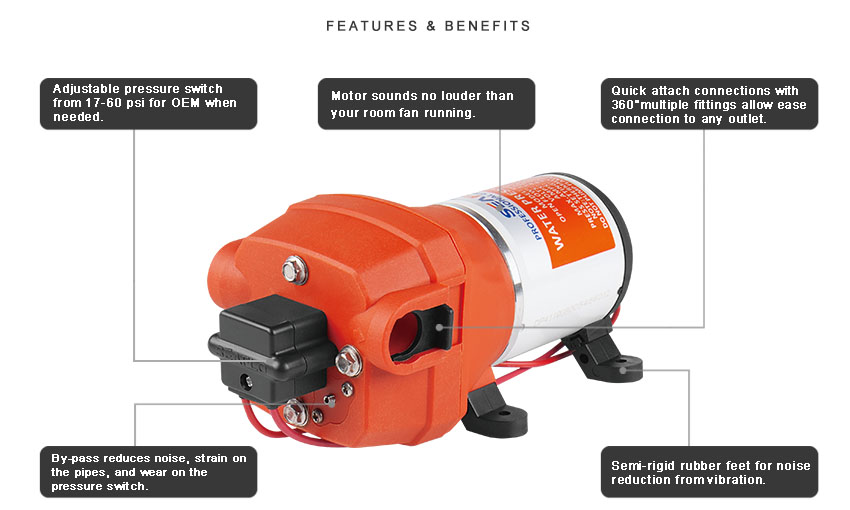

MORE FEATURES & BENEFITS
• Up to 3.3 GPM
• Can supply up to 3 fixtures
• Quick-Connect fittings
• Self priming
• Run dry safe
• On-demand use
• Industry Standard mounting pattern
• Rubber mounting-feet
• Can be used for Fresh & Salt Water
• 16 AWG, 4.5"(11.4 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-027-017-41 | 12V | 2.7 / 10.2 | 4.43 A | 17 / 1.2 |
| SFDP2-027-017-41 | 24V | 2.7 / 10.2 | 2.34 A | 17 / 1.2 |
| SFDP1-033-035-41 | 12V | 3.3 / 12.5 | 8.50 A | 35 / 2.4 |
| SFDP2-033-035-41 | 24V | 3.3 / 12.5 | 4.48 A | 35 / 2.4 |
| SFDPA1-033-035-41 | 115V | 3.3 / 12.5 | 1.25 A | 35 / 2.4 |
| SFDPA2-033-035-41 | 220V | 3.3 / 12.5 | 0.55 A | 35 / 2.4 |

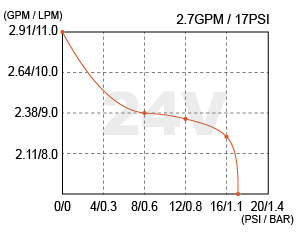

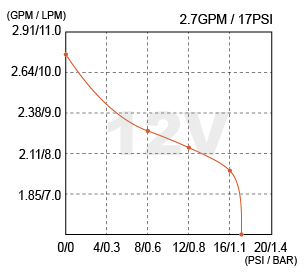

2.7GPM /17PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 2.75 | 10.4 | 2.58 | 2.91 | 11.0 | 1.35 |
| 8 | 0.55 | 2.27 | 8.60 | 3.74 | 2.38 | 9.00 | 1.98 |
| 12 | 0.83 | 2.17 | 8.20 | 4.00 | 2.32 | 8.80 | 2.13 |
| 16 | 1.10 | 2.01 | 7.60 | 4.37 | 2.22 | 8.40 | 2.3 |
| 17 | 1.17 | 0 | 0 | 4.43 | 0 | 0 | 2.34 |
3.3GPM / 35PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 3.28 | 12.4 | 3.75 | 3.54 | 13.4 | 2.00 |
| 10 | 0.69 | 2.38 | 9.00 | 5.53 | 2.59 | 9.80 | 3.10 |
| 20 | 1.38 | 2.01 | 7.60 | 6.71 | 2.27 | 8.60 | 3.63 |
| 30 | 2.07 | 1.80 | 6.80 | 7.98 | 2.11 | 8.00 | 4.16 |
| 35 | 2.42 | 0 | 0 | 8.50 | 0 | 0 | 4.48 |
SHIPPING INFORMATION
Unit Weight | 3.9 lbs (1.77 kg) |
Selling Unit Size (L x W x H) | 12.6" x4.72" x 4.33" (32 x 12 x 11 cm) |
Selling Unit Weight | 4.54 lbs (2.06 kg) |
Master Carton Size (L x W x H) | 21.65" x 14.96" x 10.23" (55 x 38 x 26 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 52.25 lbs (23.7 kg) |
Master Carton Volume | 0.054 m³ |
