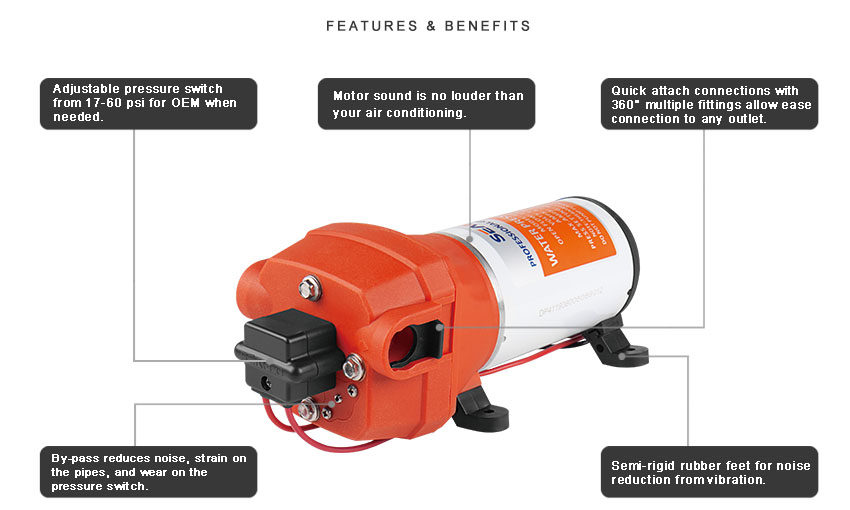

MORE FEATURES & BENEFITS
• Up to 4.5 GPM
• Can supply up to 4 fixtures
• Quick-Connect fittings
• Self priming
• Run dry safe
• On-demand use
• Industry Standard mounting pattern
• Rubber mounting-feet
• Can be used for Fresh & Salt Water
• Adjustable pressure switch
• 16 AWG, 4.5"(11.4 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-045-040-41 | 12V | 4.5 / 17.0 | 12.13 | 40 / 2.8 |
| SFDP2-045-040-41 | 24V | 4.5 / 17.0 | 6.07 | 40 / 2.8 |
| SFDPA1-045-040-41 | 115V | 4.5 / 17.0 | 1.54 | 40 / 2.8 |
| SFDPA2-045-040-41 | 220V | 4.5 / 17.0 | 0.77 | 40 / 2.8 |
4.5GPM / 40PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 4.33 | 16.40 | 5.90 | 4.54 | 17.20 | 2.94 |
| 20 | 1.38 | 3.49 | 13.20 | 9.93 | 3.8 | 14.40 | 5.22 |
| 25 | 1.73 | 3.43 | 13.00 | 10.48 | 3.43 | 13.00 | 5.31 |
| 30 | 2.07 | 2.59 | 9.80 | 11.48 | 2.85 | 10.80 | 5.48 |
| 35 | 2.42 | 2.06 | 7.80 | 12.48 | 2.32 | 8.80 | 5.72 |
| 40 | 2.76 | 0 | 0 | 13.48 | 0 | 0 | 6.07 |
SHIPPING INFORMATION
Unit Weight | 5.36 lbs (2.43 kg) |
Selling Unit Size (L x W x H) | 12.6" x4.72" x 4.33" (32 x 12 x 11 cm) |
Selling Unit Weight | 6 lbs (2.72 kg) |
Master Carton Size (L x W x H) | 21.65" x 14.96 " x 10.23" (55 x 38 x 26 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 48.72 lbs (22.1 kg) 52.25 lbs (23.7 kg) |
Master Carton Volume | 0.054 m³ |
