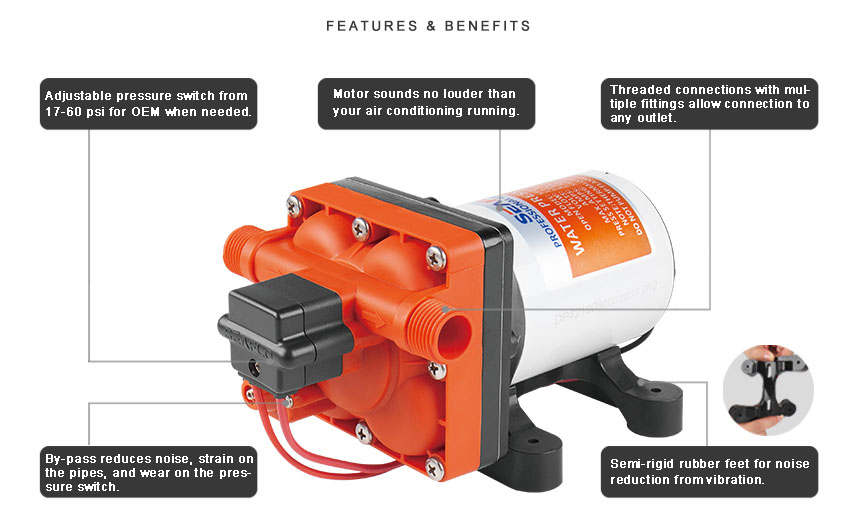

MORE FEATURES & BENEFITS
• Continuous duty
• Up to 3.0 GPM
• Self priming
• Run dry safe
• Quiet operation
• On-demand use
• Industry Standard mounting pattern
• Completely rubber mounting-base
• Internal bypass technology reduces cycling
• 16 AWG, 9.4"(23.8 cm) long leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-030-055-42 | 12V | 3.0 / 11.3 | 7.00 A | 55 / 3.8 |
| SFDP2-030-055-42 | 24V | 3.0 / 11.3 | 3.37 A | 55 / 3.8 |
| SFDPA1-030-055-42 | 115V | 3.0 / 11.3 | 1.10 A | 55 / 3.8 |
| SFDPA2-030-055-42 | 220V | 3.0 / 11.3 | 0.50 A | 55 / 3.8 |

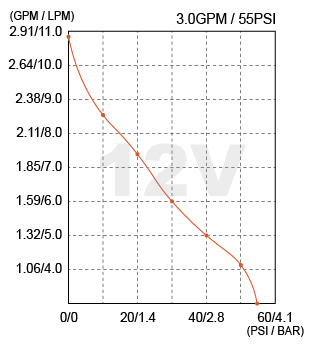

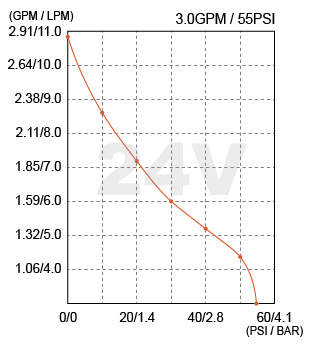

3.0GPM / 55PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 2.85 | 10.8 | 3.9 | 2.85 | 10.8 | 1.15 |
| 10 | 0.69 | 2.27 | 8.6 | 4.5 | 2.27 | 8.60 | 1.84 |
| 20 | 1.38 | 1.96 | 7.4 | 5.1 | 1.90 | 7.20 | 2.24 |
| 30 | 2.07 | 1.59 | 6.0 | 5.8 | 1.59 | 6.00 | 2.64 |
| 40 | 2.72 | 1.32 | 5.0 | 6.3 | 1.37 | 5.20 | 2.97 |
| 50 | 3.45 | 1.11 | 4.2 | 6.7 | 1.16 | 4.40 | 3.28 |
| 55 | 3.8 | 0 | 0 | 7.0 | 0 | 0 | 3.37 |
SHIPPING INFORMATION
Unit Weight | 4.08 lbs (1.85 kg) |
Selling Unit Size (L x W x H) | 11.5" x 5.32" x 5" (29.2 x 13.5 x 12.7 cm) |
Selling Unit Weight | 5.05 lbs (2.29 kg) |
Master Carton Size (L x W x H) | 23.62" x 11.02" x 11.42" (60 x 28 x 29 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 39.24 lbs (17.8 kg) |
Master Carton Volume | 0.049 m³ |
