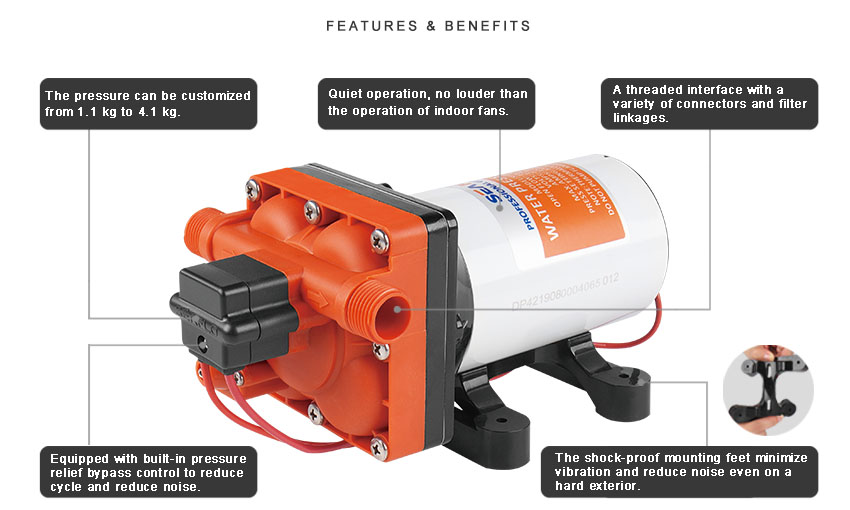

MORE FEATURES & BENEFITS
• Up to 5.0 GPM
• Continuous duty
• Self priming
• Run dry safe
• Quiet operation
• On-demand use
• Industry Standard mounting pattern
• Completely rubber mounting-base
• Internal bypass technology reduces cycling
• 14 AWG, 9.4"(23.8 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow (GPM/LPM) | Max Draw | Shut-off Pressure (PSI/BAR) |
| SFDP1-040-055-42 | 12V | 4.0 / 15.1 | 13.00 A | 55 / 3.8 |
| SFDP2-040-055-42 | 24V | 4.0 / 15.1 | 6.00 A | 55 / 3.8 |
| SFDP1-050-055-42 | 12V | 5.0 / 18.9 | 15.00 A | 55 / 3.8 |
| SFDP2-050-055-42 | 24V | 5.0 / 18.9 | 7.5 A | 55 / 3.8 |
| SFDPA1-040-055-42 | 115V | 4.0 / 15.1 | 1.80 A | 55 / 3.8 |
| SFDPA2-040-055-42 | 220V | 4.0 / 15.1 | 0.85 A | 55 / 3.8 |
SHIPPING INFORMATION
Unit Weight | 4.08 lbs (1.85 kg) |
Selling Unit Size (L x W x H) | 11.5" x 5.32" x 5" (29.2 x 13.5 x 12.7 cm) |
Selling Unit Weight | 5.05 lbs (2.29 kg) |
Master Carton Size (L x W x H) | 25.19" x 12.99" x 11.42" (64 x 33 x 29 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 52.03 lbs (23.6 kg) |
Master Carton Volume | 0.061 m³ |
