52A Series DC Diaphragm Pump

Quantity:

Brand: Seaflo

SKU:{{ product.sku }}

Model: {{ product.model }}

{{ variable.name }}

{{ value.name }}

Product Details

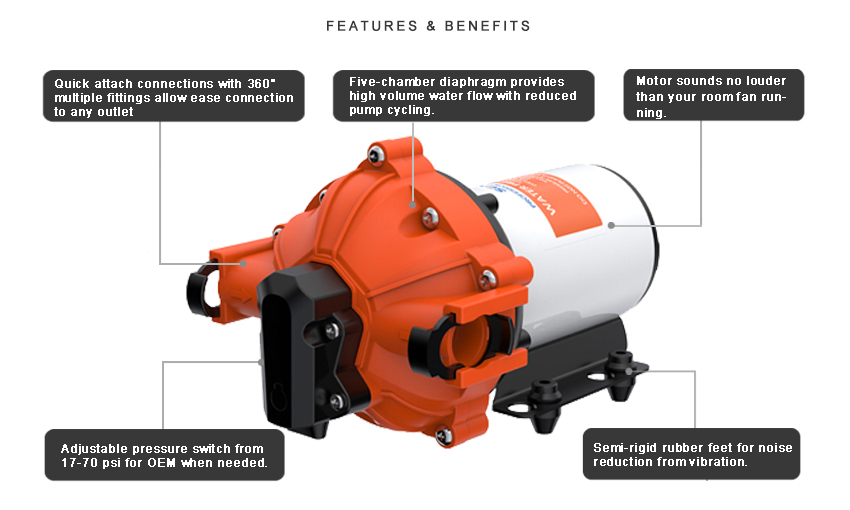

MORE FEATURES & BENEFITS

• Up to 5.0 GPM

• Continuous Duty

• Can supply up to 4 fixtures

• Quick connect fittings

• Very quiet operation

• Self priming

• Run dry safe

• On-demand use

• Industry Standard mounting pattern

• Can be used for Fresh & Salt Water

• Heavy-Duty Motor

• 16 AWG, 9"(22.8 cm) long Leads

• 2 Year Warranty

• Meets or exceeds RoHS, SGS, and ISO standards

STANDARD PUMP CONFIGURATIONS

Model	Voltage	Open Flow （GPM/LPM）	Max Draw	Shut-off Pressure （PSI/BAR)
SFDP1-040-060-52A	12V	4.0 / 15.0	13.0A	60 / 4.2
SFDP2-040-060-52A	24V	4.0 / 15.0	7.0A	60 / 4.2
SFDP1-050-060-52A	12V	5.0 / 18.9	17.0A	60 / 4.2
SFDP2-050-060-52A	24V	5.0 / 18.9	9.0A	60 / 4.2
SFDP1-050-070-52A	12V	5.0 / 18.9	18.0A	70/ 4.8
SFDP2-050-070-52A	24V	5.0 / 18.9	10.0A	70/ 4.8

52 12.jpg 52 24.jpg

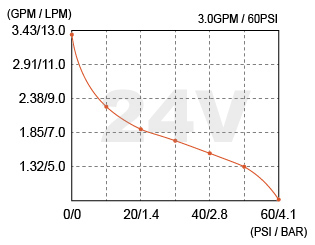

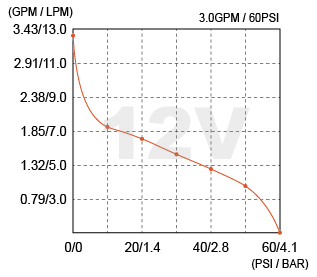

3.0GPM / 60PSI

PRESSURE		12V			24V
PRESSURE		FLOW		CURRENT	FLOW		CURRENT
PSI	BAR	GPM	LPM	AMPS	GPM	LPM	AMPS
0	0	3.33	12.60	3.78	3.43	13.00	2.02
10	0.69	1.96	7.40	4.53	2.27	8.60	2.74
20	1.38	1.74	6.60	5.79	1.90	7.20	3.14
30	2.07	1.48	5.60	6.84	1.74	6.60	3.57
40	2.76	1.27	4.80	7.41	1.53	5.80	4.03
50	3.45	1.00	3.80	8.20	1.32	5.00	4.40
60	4.14	0	0	9.12	0	0	4.79

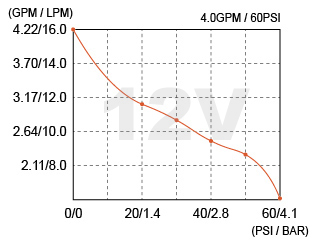

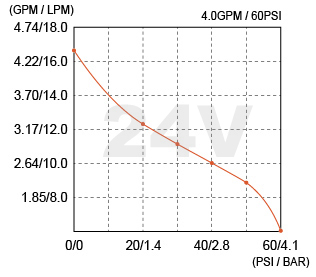

4.0GPM / 60PSI

PRESSURE		12V			24V
PRESSURE		FLOW		CURRENT	FLOW		CURRENT
PSI	BAR	GPM	LPM	AMPS	GPM	LPM	AMPS
0	0	4.22	16.00	5.24	4.39	16.60	2.22
10	0.69	/	/	/	/	/	/
20	1.38	3.06	11.60	8.06	3.28	12.40	4.13
30	2.07	2.80	10.60	9.05	2.96	11.20	4.51
40	2.76	2.54	9.60	10.00	2.64	10.00	5.09
50	3.45	2.27	8.60	10.79	2.32	8.80	5.61
60	4.14	0	0	11.40	0	0	6.24

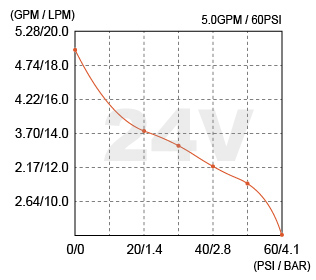

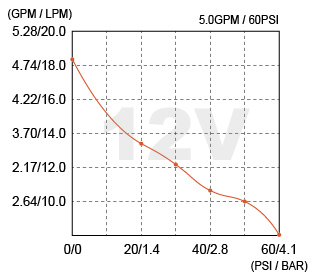

5.0GPM / 60PSI

PRESSURE		12V			24V
PRESSURE		FLOW		CURRENT	FLOW		CURRENT
PSI	BAR	GPM	LPM	AMPS	GPM	LPM	AMPS
0	0	4.86	18.40	5.12	5.18	19.60	3.20
10	0.69	/	/	/	/	/	/
20	1.38	3.54	13.40	9.14	3.75	14.20	4.67
30	2.07	3.22	12.20	10.39	3.49	13.20	5.34
40	2.76	2.85	10.80	11.57	3.17	12.00	6.01
50	3.45	2.64	10.00	12.66	2.91	11.00	6.58
60	4.14	0	0	13.72	0	0	7.18

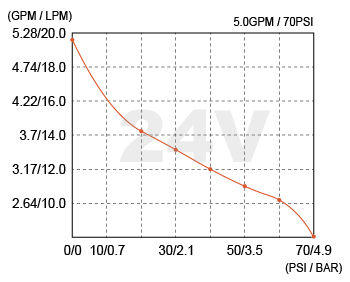

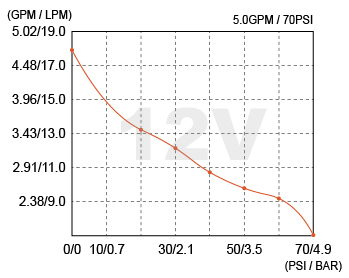

5.0GPM / 70PSI

PRESSURE		12V			24V
PRESSURE		FLOW		CURRENT	FLOW		CURRENT
PSI	BAR	GPM	LPM	AMPS	GPM	LPM	AMPS
0	0	4.86	18.40	5.12	5.18	19.6	3.2
20	0.69	3.54	13.40	9.14	3.75	14.2	4.67
30	1.38	3.22	12.20	10.39	3.49	13.2	5.34
40	2.07	2.85	10.80	11.57	3.17	12	6.01
50	2.76	2.64	10.00	12.66	2.91	11	6.58
60	3.45	2.43	9.20	13.72	2.69	10.2	7.18
70	4.14	0	0	14.47	0	0	7.65


SHIPPING INFORMATION

Unit Weight	5.86 lbs (2.66 kg)
Selling Unit Size (L x W x H)	11.1" x 6.18" x 5.35" (28.2 x 15.7 x 13.6 cm)
Selling Unit Weight	6.42 lbs (2.91 kg)
Master Carton Size (L x W x H)	19.68" x 12.00" x 12.40" (50 x 30.5 x 31.5 cm)
Master Carton Qty	6 pcs
Master Carton Weight	39.68 lbs (18 kg)
Master Carton Volume	0.048 m³
