MORE FEATURES & BENEFITS
• Up to 7.0 GPM
• Continuous Duty
• Can supply up to 6 fixtures
• Heavy-Duty Motor
• Quick connect fittings
• Self priming
• Run dry safe
• On-demand combine with by-pass
• Can be used for Fresh & Salt Water
• 16 AWG, 9"(22.8 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-070-060-53 | 12V | 7.0 / 26.5 | 24.5A | 60 / 4.2 |
| SFDP2-070-060-53 | 24V | 7.0 / 26.5 | 13.0A | 60 / 4.2 |

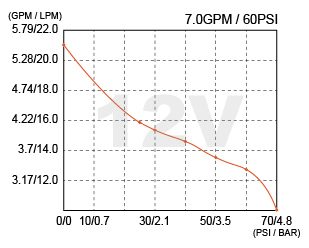

7.0GPM / 60PSI
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM | AMPS |
| 0 | 0 | 5.55 | 21.00 | 10.53 |
| 10 | 0.69 | 4.17 | 15.80 | 16.07 |
| 20 | 1.38 | 4.07 | 15.40 | 16.76 |
| 30 | 2.07 | 3.86 | 14.60 | 18.00 |
| 40 | 2.76 | 3.59 | 13.60 | 19.60 |
| 50 | 3.45 | 3.38 | 12.80 | 20.88 |
| 60 | 4.14 | 0 | 0 | 21.92 |
SHIPPING INFORMATION
Unit Weight | 9.81 lbs (4.45 kg) |
Selling Unit Size (L x W x H) | 13.46" x 7.09" x 5.63" (34.2 x 18 x 14.3 cm) |
Selling Unit Weight | 10.45 lbs (4.74 kg) |
Master Carton Size (L x W x H) | 14.96" x 14.17" x 12.60" (38 x 36 x 32 cm) |
Master Carton Qty | 4 pcs |
Master Carton Weight | 43.92 lbs (19.92 kg） |
Master Carton Volume | 0.044 m³ |
