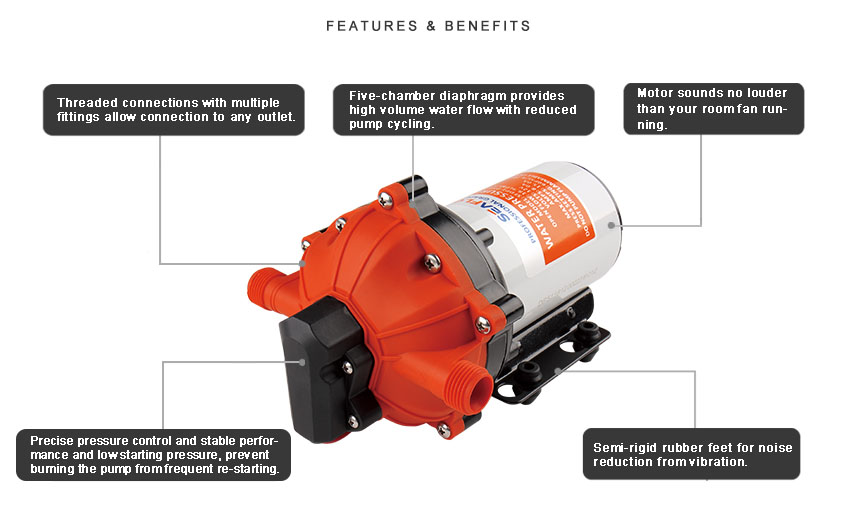

MORE FEATURES & BENEFITS
• Precise pressure control and stable performance
• Good sealing performance, waterproof and dustproof
• Low starting pressure, reduces cycling
• Good heat dissipation
• Longer pump life
• Can supply up to 4 fixtures
• Run dry capable for normal workloads
• Very quiet operation
• On-demand combine with by-pass
• Fresh water or salt water available
• 16 AWG, 9"(22.8 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-040-060-55 | 12V | 4.0 / 15.0 | 11.0A | 60 / 4.2 |
| SFDP2-040-060-55 | 24V | 4.0 / 15.0 | 6.0A | 60 / 4.2 |
| SFDP1-050-060-55 | 12V | 5.0 / 18.9 | 15.0A | 60 / 4.2 |
| SFDP2-050-060-55 | 24V | 5.0 / 18.9 | 8.0A | 60 / 4.2 |
| SFDPA1-050-060-55 | 115V | 5.0 / 18.9 | 2.56A | 60 / 4.2 |
| SFDPA2-050-060-55 | 220V | 5.0 / 18.9 | 1.28A | 60 / 4.2 |
SHIPPING INFORMATION
Unit Weight | 6.08 lbs (2.76 kg) |
Selling Unit Size (L x W x H) | 11.1" x 6.18" x 5.35" (28.2 x 15.7 x 13.6 cm) |
Selling Unit Weight | 6.66 lbs (3.02 kg) |
Master Carton Size (L x W x H) | 19.68" x 12.08" x 12.40" (50 x 30.7 x 31.5 cm) |
Master Carton Qty | 6 pcs |
Master Carton Weight | 40.12 lbs (18.2 kg) |
Master Carton Volume | 0.048 m³ |
