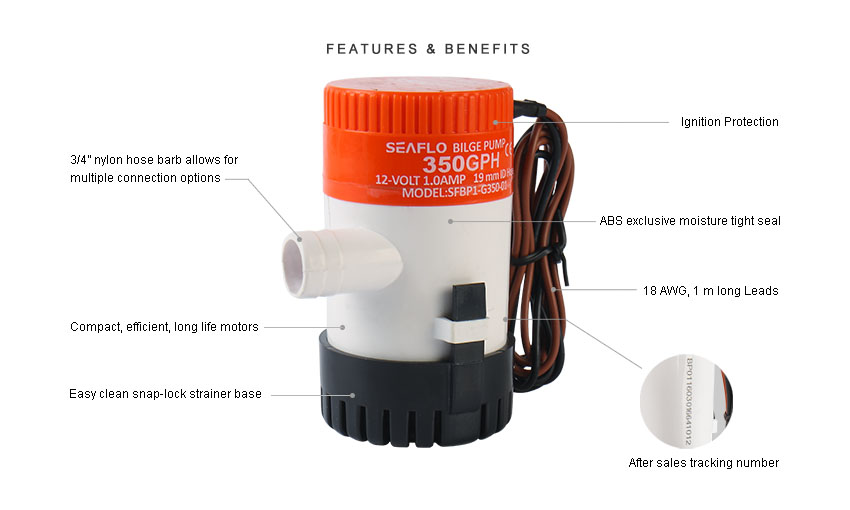

MORE FEATURES & BENEFITS
• CE, RoHS, ISO 8846, ISO 8849 standards
• Traditional operation by switch or float switch
• Pump and switch are stand alone products
• Snap-off strainer base for easy maintenance
• Sealed efficient, long life motors, quiet operation
• Entirely Submersible
• Stainless steel shaft
• Anti-Airlock protection
• Exclusive moisture tight seals
• Marine grade blocked wiring
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Head | Wire Lead |
| SFBP1-G350-01（12 V） | 350 GPH | 12 V | 1.0 A | 3.3' (1 m) | 1m /3.0' |

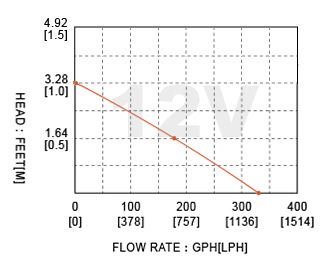

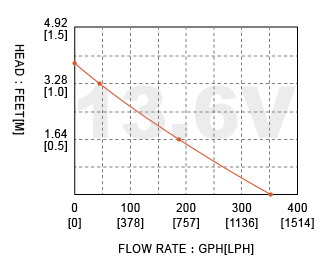

12V | 13.6V | ||||||
Current(A) | Flow | Head(M) | Current(A) | Flow | Head(M) | ||
GPH | LPH | GPH | LPH | ||||
0.87 | 328 | 1241 | 0 | 0.94 | 352 | 1332 | 0 |
1.22 | 176 | 666 | 0.5 | 1.35 | 185 | 700 | 0.5 |
2 | 0 | 0 | 1 | 1.76 | 45 | 170 | 1 |
| 2 | 0 | 0 | 1.2 | ||||
SHIPPING INFORMATION
Unit Weight | 0.75 lbs (0.34 kg) |
Selling Unit Size (L x W x H) | 3.94" x 3.54" x 4.65" (10 x 9 x 11.8 cm)（Carton) 7.68" x 5.71" (19.5 x 14.5 cm)（Clam） |
Selling Unit Weight | 0.82 lbs (0.37 kg) |
Master Carton Size (L x W x H) | 20.47" x 12.60" x 10.31" (52 x 32 x 26.2 cm) |
Master Carton Qty | 40 pcs |
Master Carton Weight | 35.27 lbs (16 kg) |
Master Carton Volume | 0.044 m³ |
