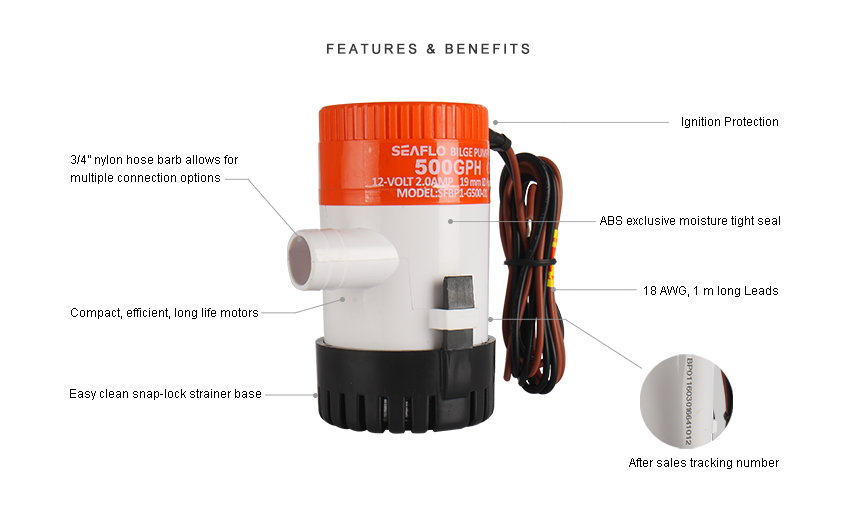

MORE FEATURES & BENEFITS
• CE, RoHS, ISO 8846, ISO 8849 standards
• Traditional operation by switch or float switch
• Pump and switch are stand alone products
• Snap-off strainer base for easy maintenance
• Sealed efficient, long life motors, quiet operation
• Entirely Submersible
• Stainless steel shaft
• Anti-Airlock protection
• Exclusive moisture tight seals
• Marine grade blocked wiring
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Head | Wire Lead |
| SFBP1-G500-01 | 500 GPH | 12 V | 1.6 A | 4.0 A | 6.56' (2 m) | 1m /3.0' |
| SFBP2-G500-01 | 500 GPH | 24 V | 1.2 A | 3.0 A | 6.56' (2 m) | 1m /3.0' |

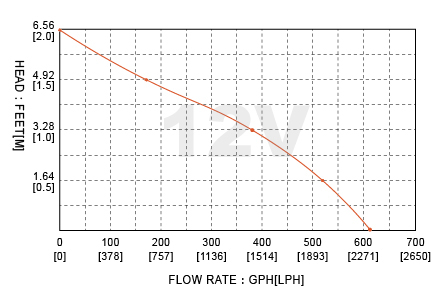

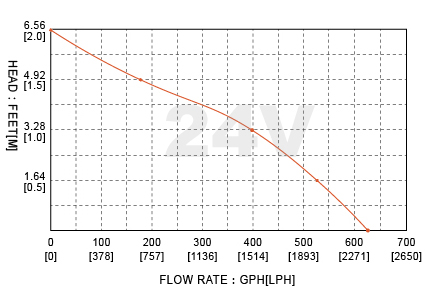

12V | 24V | ||||||
Current(A) | Flow | Head(M) | Current(A) | Flow | Head(M) | ||
GPH | LPH | GPH | LPH | ||||
2.16 | 618 | 2339 | 0 | 1.05 | 623 | 2358 | 0 |
2.58 | 523 | 1979 | 0.5 | 1.56 | 528 | 1998 | 0.5 |
3.04 | 386 | 1461 | 1 | 2.12 | 399 | 1510 | 1 |
3.62 | 167 | 632 | 1.5 | 2.66 | 178 | 674 | 1.5 |
4 | 0 | 0 | 2 | 3 | 0 | 0 | 2 |
SHINPPING INFORMATION
Unit Weight | 0.75 lbs (0.34 kg) |
Selling Unit Size (L x W x H) | 3.94" x 3.54" x 4.65" (10 x 9 x 11.8 cm)（Carton) 7.68" x 5.71" (19.5 x 14.5 cm)（Clam） |
Selling Unit Weight | 0.82 lbs (0.37 kg) |
Master Carton Size (L x W x H) | 20.47" x 12.60" x 10.31" (52 x 32 x 26.2 cm) |
Master Carton Qty | 40 pcs |
Master Carton Weight | 35.27 lbs (16 kg) |
Master Carton Volume | 0.044 m³ |
