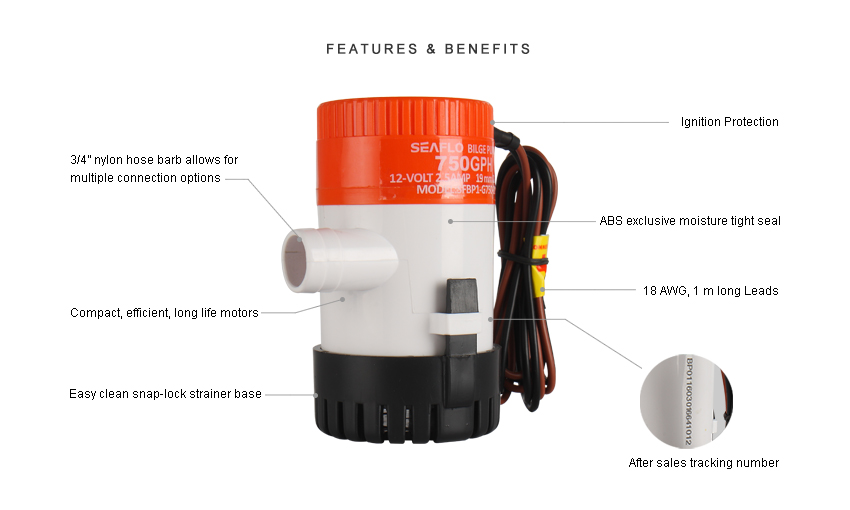

MORE FEATURES & BENEFITS
• CE, RoHS, ISO 8846, ISO 8849 standards
• Traditional operation by switch or float switch
• Pump and switch are stand alone products
• Snap-off strainer base for easy maintenance
• Sealed efficient, long life motors, quiet operation
• Entirely Submersible
• Stainless steel shaft
• Anti-Airlock protection
• Exclusive moisture tight seals
• Marine grade blocked wiring
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Head | Wire Lead |
| SFBP1-G750-01 | 750 GPH | 12 V | 2.5 A | 5.0 A | 8.2' (2.5 m) | 1m /3.0' |
| SFBP2-G750-01 | 750 GPH | 24 V | 1.2 A | 4.0 A | 8.5' (2.6 m) | 1m /3.0' |

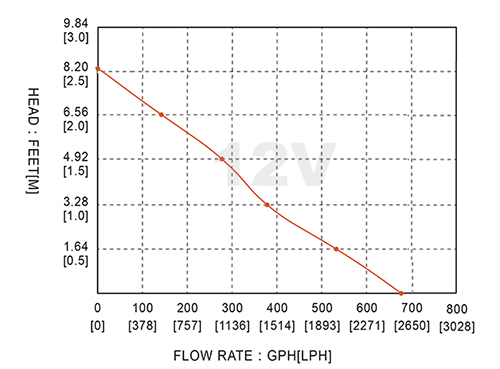

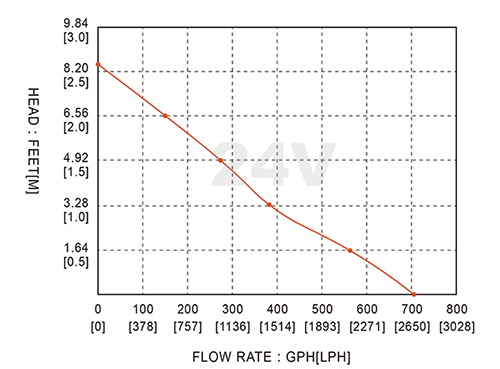

12V | 24V | ||||||
Current(A) | Flow | Head(M) | Current(A) | Flow | Head(M) | ||
GPH | LPH | GPH | LPH | ||||
2.5 | 675 | 2554 | 0 | 1.27 | 703 | 2660 | 0 |
3.05 | 537 | 2032 | 0.5 | 1.65 | 566 | 2142 | 0.5 |
3.64 | 377 | 1427 | 1 | 2.42 | 384 | 1453 | 1 |
4.36 | 286 | 1082 | 1.5 | 3.02 | 279 | 1056 | 1.5 |
4.62 | 145 | 549 | 2 | 3.52 | 154 | 583 | 2 |
5 | 0 | 0 | 2.5 | 4 | 0 | 0 | 2.6 |
SHIPPING INFORMATION
Unit Weight | 0.75 lbs (0.34 kg) |
Selling Unit Size (L x W x H) | 3.94" x 3.54" x 4.65" (10 x 9 x 11.8 cm)（Carton) 7.68" x 5.71" (19.5 x 14.5 cm)（Clam） |
Selling Unit Weight | 0.82 lbs (0.37 kg) |
Master Carton Size (L x W x H) | 20.47" x 12.60" x 10.31" (52 x 32 x 26.2 cm) |
Master Carton Qty | 40 pcs |
Master Carton Weight | 35.27 lbs (16 kg) |
Master Carton Volume | 0.044 m³ |
