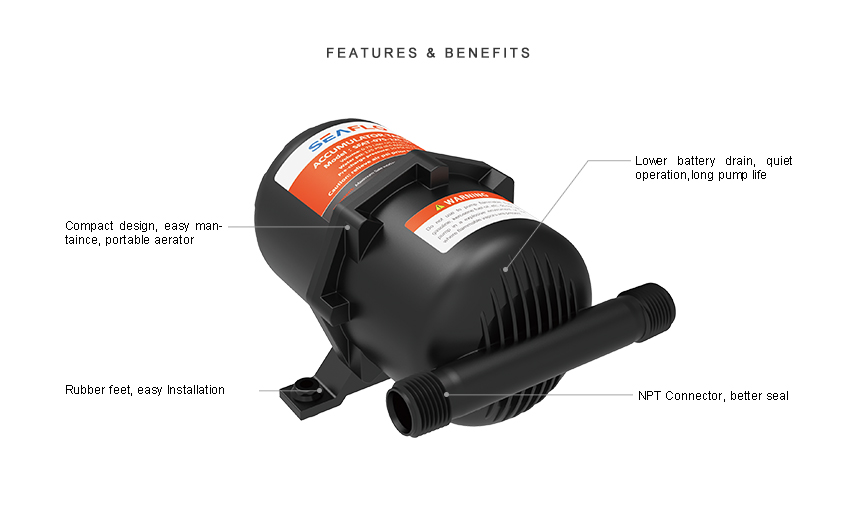

MORE FEATURES & BENEFITS
• Smoother flow, quieter water systems
• Internal rubber membrane eliminates maintenance and allows universal mounting.
• Better control of hot water temperatures
• Simply fitted to new or existing systems
• Longer pump life, lower battery drain
• Snap-in port fittings
STANDARD PUMP CONFIGURATIONS
| Model | Internal Volume | Pre-charge Pressure | Max Operating Pressure | Air Fill Valve |
SFAT-075-125-01 | 0.75 L 23.5 OZ | 10 PSI 0.7 BAR | 125 PSI 8.6 BAR | standard automotive style tire valve |
SFAT-100-125-01 | 1.0 L 33.8 OZ | 10 PSI 0.7 BAR | 125 PSI 8.6 BAR | standard automotive style tire valve |
SHIPPING INFORMATION
Model | SFAT-075-125-01 | SFAT-100-125-01 |
| Unit Tank Weight | 0.79 lbs（0.36 kg） | 1.15 lbs（0.52 kg） |
Selling Unit Size (L x W x H) | 10.24" x 7.68" x 4.72" (26 x 19.5 x 12 cm) | 14.37" x 7.87" x 4.92" (36.5 x 20.0 x 12.5 cm) |
Selling Unit Weight | 1.01 lbs（0.46 kg） | 1.46 lbs（0.66 kg） |
Master Carton Size (L x W x H) | 25.98" x 20.87" x 17.52" (66 x 53 x 44.5 cm) | 29.33" x 14.37" x 17.32" (74.5 x 36.5 x 44.0 cm) |
Master Carton Qty | 24 pcs | 14 pcs |
Master Carton Weight | 28.66 lbs (13.00 kg) | 24.8 lbs (11.25 kg) |
Master Carton Volume | 0.1497 m³ | 0.12 m³ |
