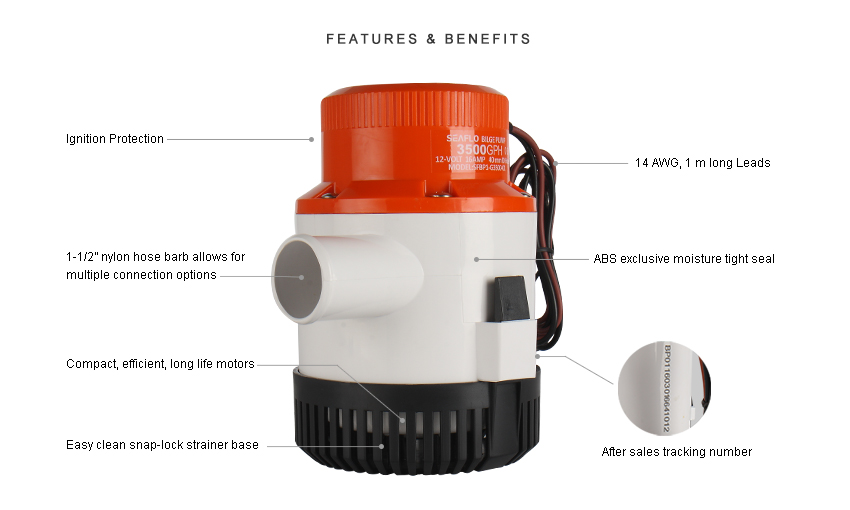

MORE FEATURES & BENEFITS
• CE, RoHS, ISO 8846, ISO 8849 standards
• Traditional operation by switch or float switch
• Pump and switch are stand alone products
• Entirely Submersible
• Snap-off strainer base for easy maintenance
• Sealed efficient, long life motors, quiet operation
• Anti-Airlock protection
• Exclusive moisture tight seals
• Marine grade blocked wiring
• 18 AWG, 1 m long leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G3000-01 | 3000 GPH | 12 V | 14.0 A | 16.0 A | 1m /3.0' |
| SFBP2-G3000-01 | 3000 GPH | 24 V | 7.0 A | 9.0 A | 1m /3.0' |

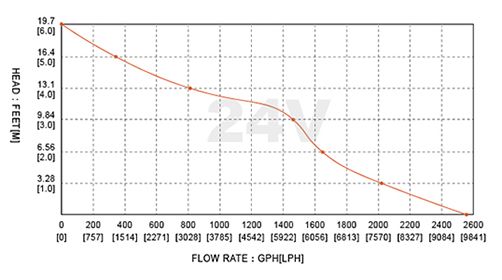

12V | 24V | ||||||
Current(A) | Flow | Head(M) | Current(A) | Flow | Head(M) | ||
GPH | LPH | GPH | LPH | ||||
| 13.4 | 2358 | 8923 | 0 | 8 | 2568 | 9718 | 0 |
| 13.8 | 2015 | 7625 | 1 | 8.15 | 2106 | 7970 | 1 |
| 14.2 | 1539 | 5824 | 2 | 8.36 | 1633 | 6180 | 2 |
| 14.67 | 1386 | 5245 | 3 | 8.42 | 1445 | 5468 | 3 |
| 15.2 | 769 | 2910 | 4 | 8.63 | 822 | 3111 | 4 |
| 15.6 | 368 | 1393 | 5 | 8.75 | 355 | 1343 | 5 |
| 16 | 0 | 0 | 6 | 9 | 0 | 0 | 6 |
SHIPPING INFORMATION
Unit Weight | 4.63 lbs (2.1 kg) |
Selling Unit Size (L x W x H) | 6.42" x 6.10" x 9.25" (16.3 x 15.5 x 23.5 cm) |
Selling Unit Weight | 5.22 lbs ( 2.37 kg) |
Master Carton Size (L x W x H) | 23.03" x 13.35" x 8.70" (58.5 x 33.9 x 22.1 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 41.89 lbs (19 kg) |
Master Carton Volume | 0.044 m³ |
