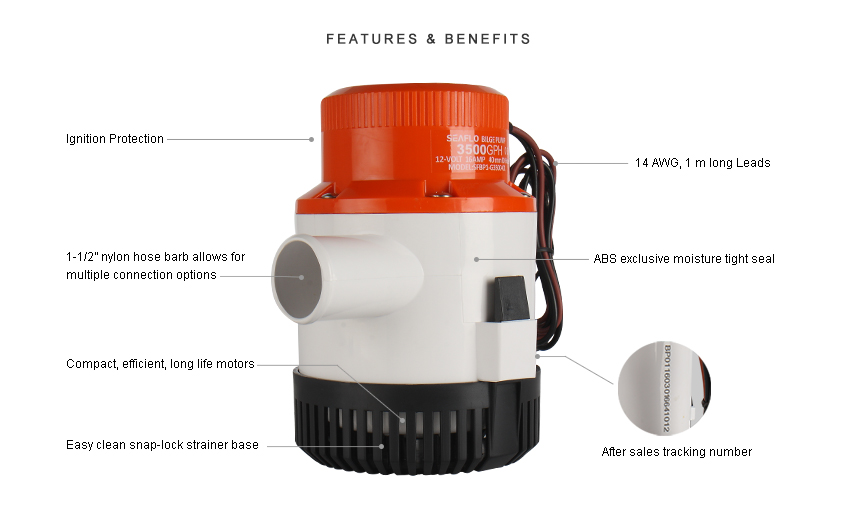

MORE FEATURES & BENEFITS
• CE, RoHS, ISO 8846, ISO 8849 standards
• Traditional operation by switch or float switch
• Pump and switch are stand alone products
• Entirely Submersible
• Snap-off strainer base for easy maintenance
• Sealed efficient, long life motors, quiet operation
• Anti-Airlock protection
• Exclusive moisture tight seals
• Marine grade blocked wiring
• 18 AWG, 1 m long leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G3500-01 | 3500 GPH | 12 V | 16.0 A | 25.0 A | 3' (1 m) |
| SFBP2-G3500-01 | 3500 GPH | 24 V | 8.0 A | 12.5 A | 3' (1 m) |

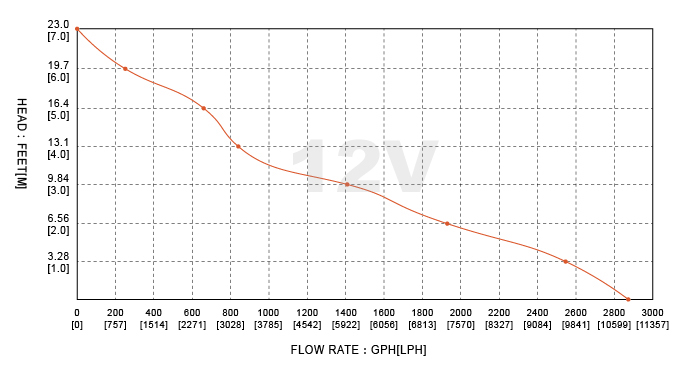

12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
19.7 | 2872 | 10868 | 0 |
20.4 | 2556 | 9672 | 1 |
21.1 | 1933 | 7315 | 2 |
21.9 | 1406 | 5321 | 3 |
22.8 | 844 | 3194 | 4 |
23.6 | 631 | 2388 | 5 |
24.4 | 255 | 965 | 6 |
25 | 0 | 0 | 7 |
SHIPPING INFORMATION
Unit Weight | 4.63 lbs (2.1 kg) |
Selling Unit Size (L x W x H) | 6.42" x 6.10" x 9.25" (16.3 x 15.5 x 23.5 cm) |
Selling Unit Weight | 5.22 lbs ( 2.37 kg) |
Master Carton Size (L x W x H) | 23.03" x 13.35" x 8.70" (58.5 x 33.9 x 22.1 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 41.89 lbs (19 kg) |
Master Carton Volume | 0.044 m³ |
