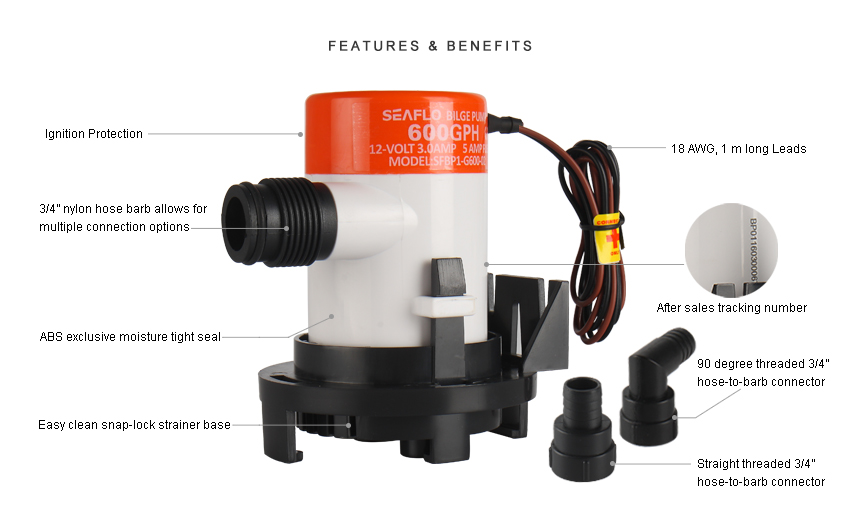

MORE FEATURES & BENEFITS
• Pump and switch are stand alone products
• Traditional operation by switch or float switch
• Compact, efficient, long life motors, quiet and vibration-less operation
• CE, RoHS, meets ISO 8846 and ISO 8849 standards
• Size: 350, 600gph in 12 volt version
• Easy clean snap-lock strainer bases
• Completely submersible
• Marine grade blocked wiring
• 18 AWG, 1 m long leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G350-02 | 350 GPH | 12 V | 0.98 A | 2.2 A | 3' (1 m) |
12V | |||

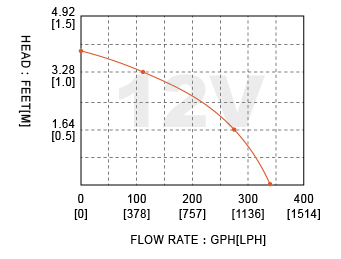

Current(A) | Flow | Head(M) | |
GPH | LPH | ||
| 0.98 | 340 | 1287 | 0 |
| 1.56 | 284 | 1075 | 0.5 |
| 1.89 | 112 | 424 | 1 |
| 2.2 | 0 | 0 | 1.2 |
SHIPPING INFORMATION
Unit Weight | 0.71 lbs (0.32 kg) |
Selling Unit Size (L x W x H) | 14.96" x 7.48" (38 x 19 cm) |
Selling Unit Weight | 1.26 lbs (0.57 kg) |
Master Carton Size (L x W x H) | 26.18" x 15.94" x 15.94 " (66.5 x 40.5 x 40.5 cm) |
Master Carton Qty | 40 pcs |
Master Carton Weight | 33.07 lbs (15 kg) |
Master Carton Volume | 0.109 m³ |
