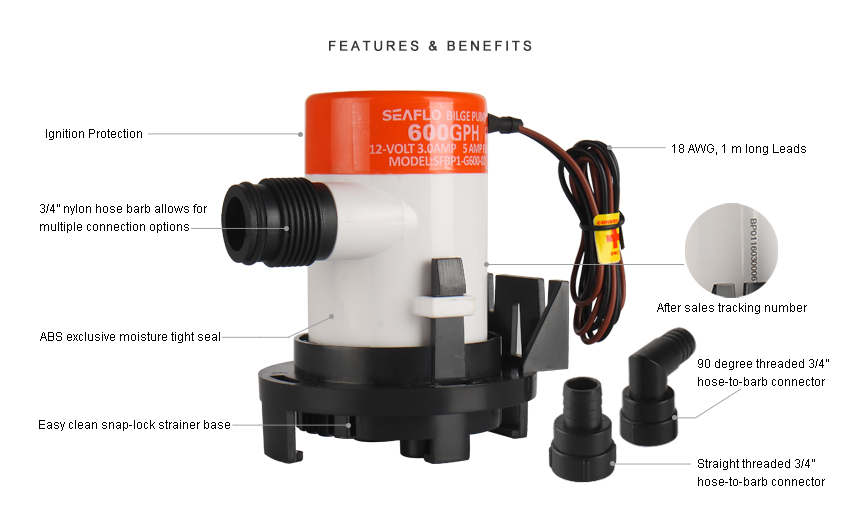

MORE FEATURES & BENEFITS
• Pump and switch are stand alone products
• Traditional operation by switch or float switch
• Compact, efficient, long life motors, quiet and vibration-less operation
• CE, RoHS, meets ISO 8846 and ISO 8849 standards
• Size: 350, 600gph in 12 volt version
• Easy clean snap-lock strainer bases
• Completely submersible
• Marine grade blocked wiring
• 18 AWG, 1 m long leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G600-02 | 600 GPH | 12 V | 3.0 A | 5.0 A | 3' (1 m) |
12V | |||

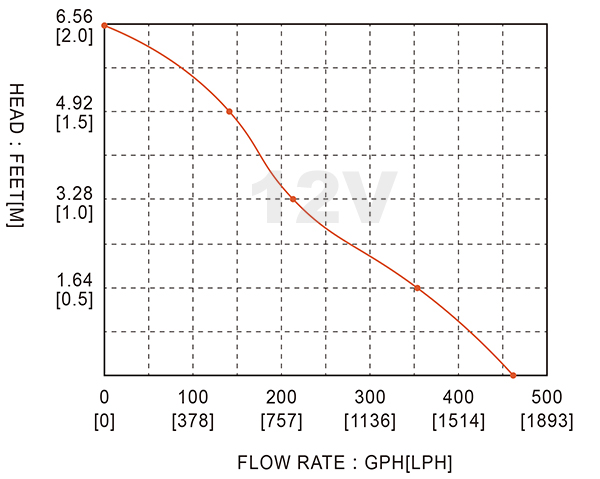

Voltage(V) | Flow | Head(M) | |
GPH | LPH | ||
| 2.8 | 467 | 1767 | 0 |
| 3.5 | 352 | 1332 | 0.5 |
| 4.16 | 211 | 798 | 1 |
| 4.63 | 142 | 537 | 1.5 |
| 5 | 0 | 0 | 2 |
SHIPPING INFORMATION
Unit Weight | 0.71 lbs (0.32 kg) |
Selling Unit Size (L x W x H) | 14.96" x 7.48" (38 x 19 cm) |
Selling Unit Weight | 1.26 lbs (0.57 kg) |
Master Carton Size (L x W x H) | 26.18" x 15.94" x 15.94" (66.5 x 40.5 x 40.5 cm) |
Master Carton Qty | 40 pcs |
Master Carton Weight | 33.07 lbs (15 kg) |
Master Carton Volume | 0.109 m³ |
