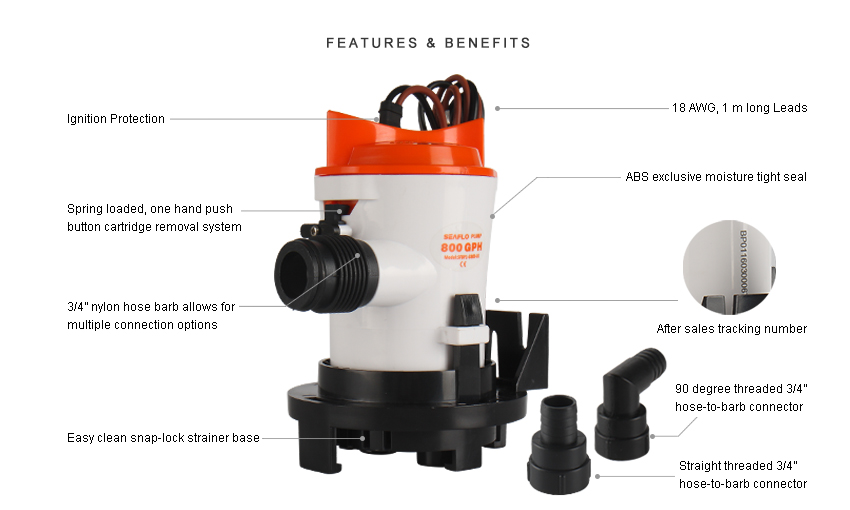

MORE FEATURES & BENEFITS
• Pump and switch are stand alone products
• Traditional operation by switch or float switch
• Robust, easy click-in, replaceable motor
• Compact, efficient, long life motors, quiet and vibration-less operation
• Size: 350, 600, 800gph in 12 volt version
• Easy clean snap-lock strainer bases
• Completely submersible
• Marine grade blocked wiring
• Entirely submersible
• 18 AWG, 1 m long leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G800-03 | 800 GPH | 12 V | 4.0 A | 7.4 A | 3' (1 m) |

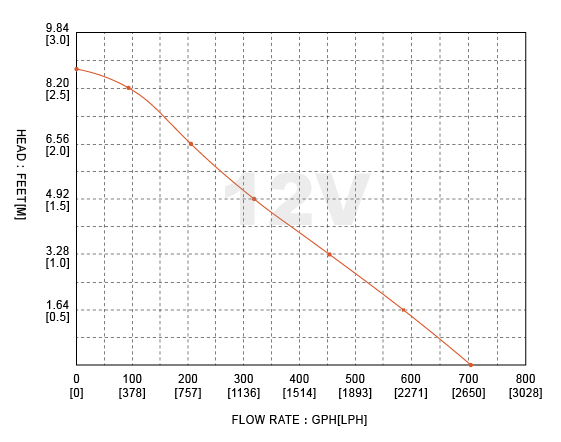

12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
| 3.35 | 702 | 2657 | 0 |
| 4.08 | 589 | 2229 | 0.5 |
| 4.76 | 455 | 1722 | 1 |
| 5.69 | 321 | 1215 | 1.5 |
| 6.46 | 208 | 787 | 2 |
| 7.12 | 94 | 356 | 2.5 |
| 7.4 | 0 | 0 | 2.7 |
SHIPPING INFORMATION
Unit Weight | 0.84 lbs (0.38 kg) |
Selling Unit Size (L x W x H) | 15.35" x 8.07" (39 x 20.5 cm) |
Selling Unit Weight | 1.06 lbs (0.48 kg) |
Master Carton Size (L x W x H) | 23.15" x 16.73" x 16.54" (58.8 x 42.5 x 42 cm) |
Master Carton Qty | 40 pcs |
Master Carton Weight | 46.30 lbs (21 kg) |
Master Carton Volume | 0.105 m³ |
