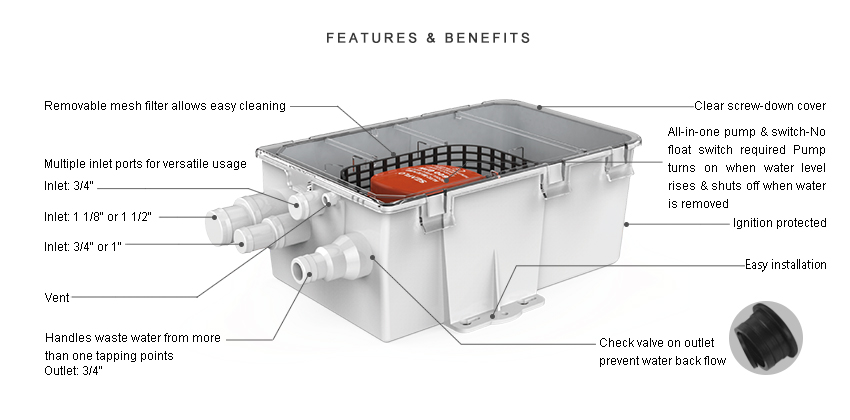

MORE FEATURES & BENEFITS
• Removable mesh filter allows easy cleaning
• Clear screw-down cover
• Check valve on outlet
• Ignition protected
• Handles waste water from more than one tapping point
• Multiple inlet ports for versatile usage
• Available in 600,750 and 1100 GPH
• Easy installation
• 18 AWG, 1 m long Leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G600-07 | 600 GPH | 12 V | 2.5 A | 4.0 A | 1m /3.0' |
| SFBP2-G600-07 | 600 GPH | 24 V | 1.5 A | 3.0 A | 1m /3.0' |

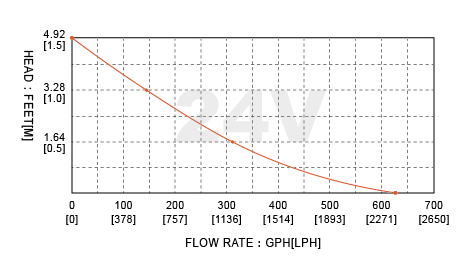

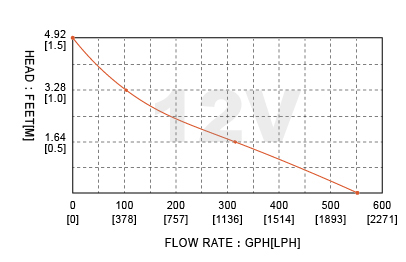

12V | 24V | ||||||
Current(A) | Flow | Head(M) | Current(A) | Flow | 扬程(M) | ||
GPH | LPH | GPH | LPH | ||||
| 1.84 | 551 | 2085 | 0 | 0.94 | 627 | 2373 | 0 |
| 2.45 | 321 | 1215 | 0.5 | 1.34 | 314 | 1188 | 0.5 |
| 3.34 | 105 | 397 | 1 | 2.18 | 145 | 549 | 1 |
| 4 | 0 | 0 | 1.5 | 3 | 0 | 0 | 1.5 |
SHIPPING INFORMATION
Unit Pump Weight | 2.69 lbs (1.22 kg) |
Selling Unit Size (L x W x H) | 8.66"x 4.72" x 13.39" (22 x 12 x 34 cm) |
Selling Unit Weight | 3.14 lbs(1.42 kg) |
Master Carton Size (L x W x H) | 23.62"x 15.28" x 16.54" (60 x 38.8 x 42 cm) |
Master Carton Qty | 9 pcs |
Master Carton Weight | 34.4 lbs (15.6 kg) |
