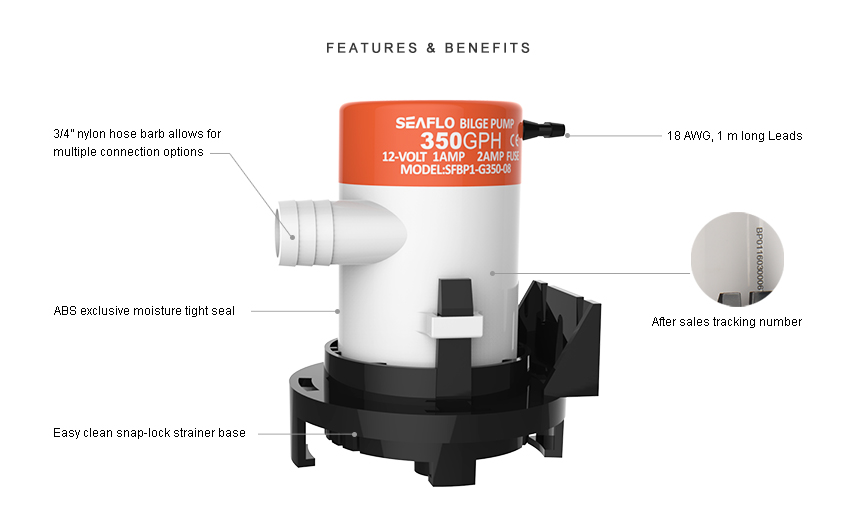

MORE FEATURES & BENEFITS
• Pump and switch are stand alone products
• Traditional operation by switch or float switch
• Compact, efficient, long life motors, quiet and vibration-less operation
• CE, RoHS, meets ISO 8846 and ISO 8849 standards
• Size: 350, 600gph in 12 volt version
• Easy clean snap-lock strainer bases
• Completely submersible
• Marine grade blocked wiring
• 18 AWG, 1 m long leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G600-08 | 600 GPH | 12 V | 3.0 A | 5.0 A | 3' (1 m) |

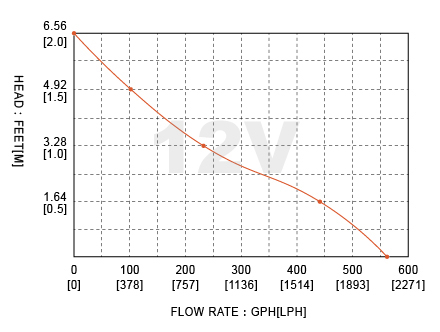

12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
| 1.54 | 563 | 2131 | 0 |
| 2.68 | 444 | 1680 | 0.5 |
| 3.41 | 236 | 893 | 1 |
| 4.16 | 102 | 386 | 1.5 |
| 5 | 0 | 0 | 2 |
SHIPPING INFORMATION
Unit Pump Weight | 0.56 lbs (0.25 kg) |
Selling Unit Size (L x W x H) | 7.48"x 5.31"x 3.62" (19 x 13.5 x 9.2 cm) |
Selling Unit Weight | 0.67 lbs (0.3 kg) |
Master Carton Size (L x W x H) | 26.38"x 15.75"x 12.8" (67 x 40 x 42.5 cm) |
Master Carton Qty | 40 pcs |
Master Carton Weight | 29.75(13.5 kg) |
