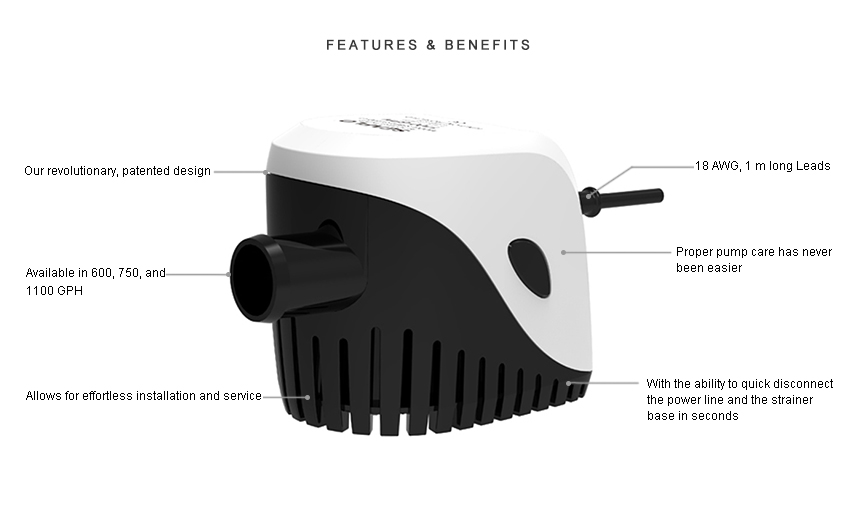

MORE FEATURES & BENEFITS
• All-in-one pump & Electromagnetic sensor switch
• Enclosed construction offers advanced reliability
• Allows for effortless installation and service
• With the ability to quick disconnect the power line and the strainer base in seconds
• Proper pump care has never been easier
• Available in 600, 750, and 1100 GPH
• Snap-off strainer base for easy cleaning
• Our revolutionary, patented design
• 18 AWG, 1 m long leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G600-11 | 600 GPH | 12 V | 2.5 A | 4.0 A | 1 m/3.0' |
| SFBP2-G600-11 | 600 GPH | 24 V | 1.5 A | 3.3 A | 1 m/3.0' |

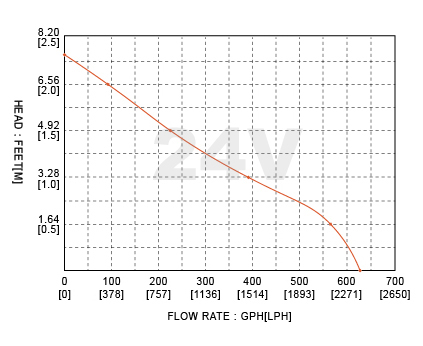

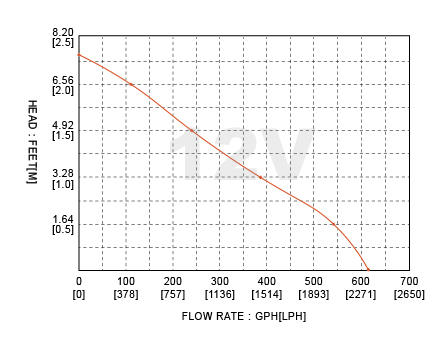

12V | 24V | ||||||
Current(A) | Flow | Head(M) | Current(A) | Flow | Head(M) | ||
GPH | LPH | GPH | LPH | ||||
| 2.1 | 617 | 2335 | 0 | 1.52 | 623 | 2358 | 0 |
| 2.42 | 544 | 2059 | 0.5 | 1.86 | 568 | 2149 | 0.5 |
| 2.87 | 386 | 1461 | 1 | 2.16 | 388 | 1468 | 1 |
| 3.32 | 241 | 912 | 1.5 | 2.73 | 226 | 855 | 1.5 |
| 3.86 | 115 | 435 | 2 | 3.14 | 94 | 356 | 2 |
| 4 | 0 | 0 | 2.3 | 3.3 | 0 | 0 | 2.3 |
SHIPPING INFORMATION
Unit Weight | 1.21 lbs (0.55 kg) |
Selling Unit Size (L x W x H) | 6.89" x 3.62" x 4.56 " ( 17.5 x 9.2 x 11.6 cm) |
Selling Unit Weight | 1.32 lbs (0.6 kg) |
Master Carton Size (L x W x H) | 19.29" x 14.37" x 11.22" (49 x 36.5 x 28.5 cm) |
Master Carton Qty | 20 pcs |
Master Carton Weight | 26.46 lbs (12 kg) |
Master Carton Volume | 0.051 m³ |
