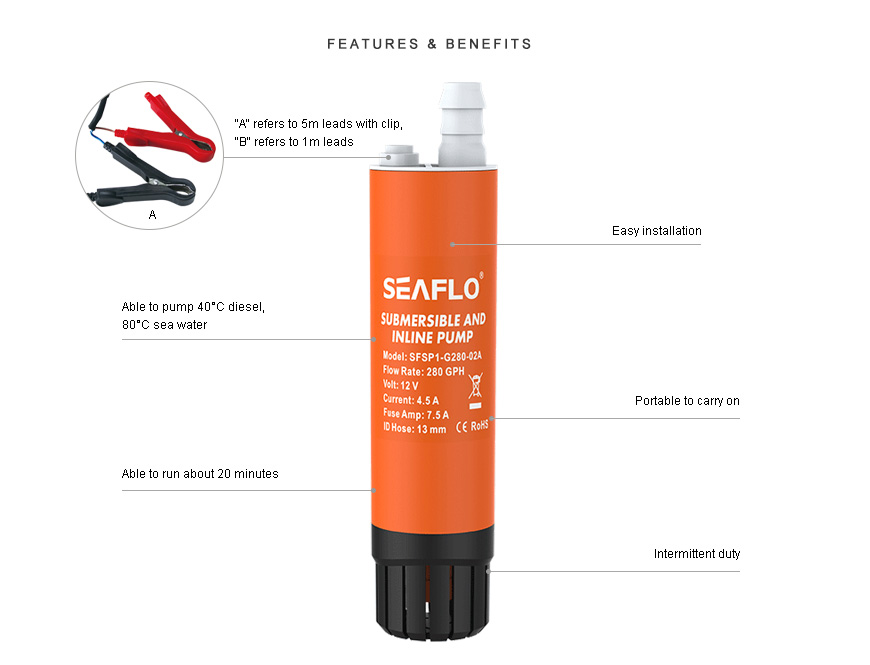

MORE FEATURES & BENEFITS
• Able to pump 40°C diesel, 80°C sea water
• Able to run about 20 minutes
• Portable to carry on
• Easy installation
• Intermittent duty
• “A” refers to 5m leads with clip, “B” refers to 1m leads
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Current | Max Draw | Head | Wire Lead |
SFSP1-G280-02A | 12 V | 4.0 A | 7.5 A | 23' (7 m) | 16' (5 m) |
SFSP2-G280-02B | 24 V | 4.4 A | 7.5 A | 23' (7 m) | 3' (1 m) |

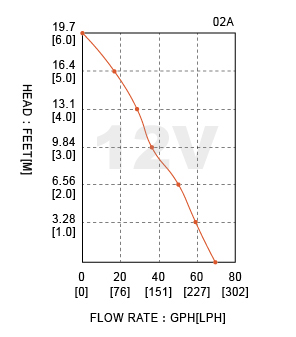

SFSP-G280-02A
12V | ||
Current(A) | Flow(GPH) | Head(M) |
4.4 | 248 | 0 |
4.86 | 201 | 1 |
5.23 | 155 | 2 |
5.86 | 123 | 3 |
6.35 | 96 | 4 |
7.02 | 52 | 5 |
7.5 | 0 | 6 |

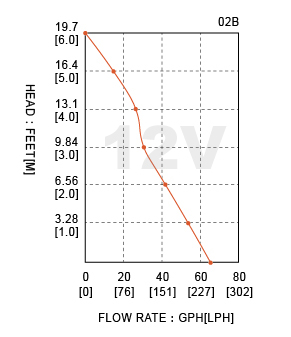

SFSP-G280-02B
12V | ||
Current(A) | Flow(GPH) | Head(M) |
4 | 266 | 0 |
4.62 | 226 | 1 |
5.28 | 175 | 2 |
5.88 | 133 | 3 |
6.45 | 108 | 4 |
6.86 | 66 | 5 |
7.5 | 0 | 6 |
SHIPPING INFORMATION
SFSP-G280-02A
Unit Weight | 1.19 lbs（0.54 kg） |
Selling Unit Size (L x W x H) | 11.42 x 8.27 x 0.28" （29 x 21 x 0.7 cm） |
Selling Unit Weight | 1.39 lbs（0.63 kg） |
Master Carton Size (L x W x H) | 25.91" x 15.43 "x 12.6" (65.8 x 39.2 x 32 cm) |
Master Carton Qty | 15 pcs |
Master Carton Weight | 26.01 lbs (11.8 kg) |
Master Carton Volume | 0.083 m³ |
SFSP-G280-02B
Unit Weight | 1.19 lbs（0.54 kg） |
Selling Unit Size (L x W x H) | 11.42 x 8.27 x 0.28" （29 x 21 x 0.7 cm） |
Selling Unit Weight | 1.39 lbs（0.63 kg） |
Master Carton Size (L x W x H) | 20.67" x 11.81 "x 10.43" (52.5 x 30 x 26.5 cm) |
Master Carton Qty | 20 pcs |
Master Carton Weight | 19.18 lbs (8.7 kg) |
Master Carton Volume | 0.042 m³ |
