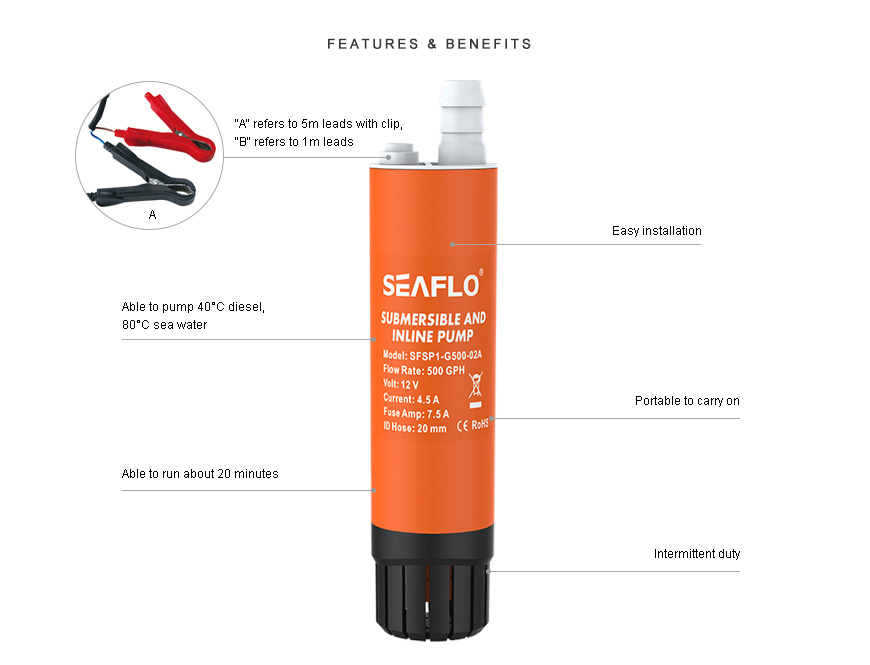

MORE FEATURES & BENEFITS
• Able to pump 40°C diesel, 80°C sea water
• Able to run about 20 minutes
• Portable to carry on
• Easy installation
• Intermittent duty
• “A” refers to 5m leads with clip, “B” refers to 1m leads
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Head | Wire Lead |
| SFSP1-G500-02A | 500 GPH | 12 V | 4.5 A | 7.5 A | 23' (7 m) | 16' (5 m) |
| SFSP2-G500-02B | 500 GPH | 24 V | 4.6 A | 7.5 A | 23' (7 m) | 3.0' (1 m) |

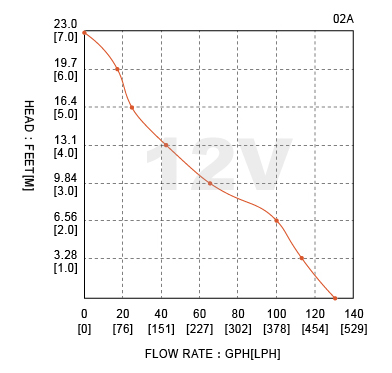

SFSP-G500-02A
12V | ||
Current(A) | Flow(GPH) | Head(M) |
4.5 | 492 | 0 |
4.83 | 399 | 1 |
5.12 | 379 | 2 |
5.49 | 318 | 3 |
5.86 | 254 | 4 |
6.15 | 168 | 5 |
6.85 | 32 | 6 |
7.5 | 0 | 7 |

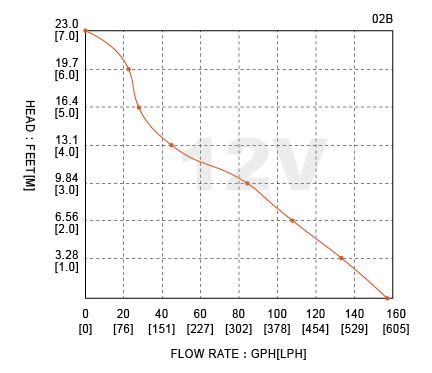

SFSP-G500-02B
12V | ||
Current(A) | Flow(GPH) | Head(M) |
4.6 | 445 | 0 |
4.82 | 360 | 1 |
5.23 | 352 | 2 |
5.54 | 289 | 3 |
6.03 | 230 | 4 |
6.38 | 152 | 5 |
6.79 | 29 | 6 |
7.5 | 0 | 7 |
SHIPPING INFORMATION
SFSP-G500-02A
Unit Weight | 1.19 lbs（0.54 kg） |
Selling Unit Size (L x W x H) | 11.42 x 8.27 x 0.28 " （29 x 21 x 0.7 cm） |
Selling Unit Weight | 1.39 lbs（0.63 kg） |
Master Carton Size (L x W x H) | 25.91" x 15.43 "x 12.6" (65.8 x 39.2 x 32 cm) |
Master Carton Qty | 15 pcs |
Master Carton Weight | 26.01 lbs (11.8 kg) |
Master Carton Volume | 0.083 m³ |
SFSP-G500-02B
Unit Weight | 1.19 lbs（0.54 kg） |
Selling Unit Size (L x W x H) | 11.42 x 8.27 x 0.28 " （29 x 21 x 0.7 cm） |
Selling Unit Weight | 1.39 lbs（0.63 kg） |
Master Carton Size (L x W x H) | 20.67" x 11.81 "x 10.43" (52.5 x 30 x 26.5 cm) |
Master Carton Qty | 20 pcs |
Master Carton Weight | 19.18 lbs (8.7 kg) |
Master Carton Volume | 0.042 m³ |
