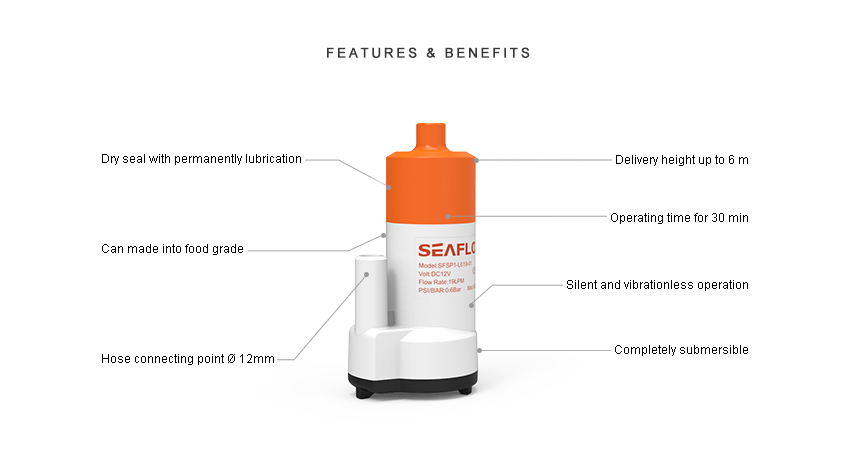

MORE FEATURES & BENEFITS
• Pumps up to 18 vertical feet
• 1/2" Outlet

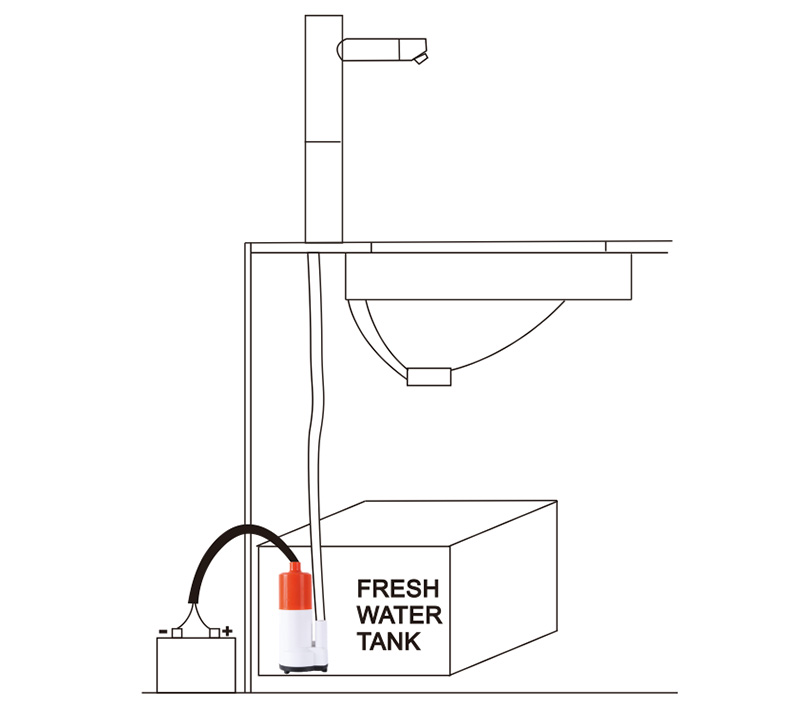

• Ideal for backup battery sump
• Quiet and vibration less operation
• Completely submersible
• 18 AWG, 1 m long Leads
• Operating time for 30 min
• Dry seal with permanently lubrication
• Can made into food grade
• Delivery height up to 6m
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Max Draw | BRA | Wire Lead |
| SFSP1-L012-01 | 12 LPM | 12 V | 2.0 A | 0.6 bar | 3' (1 m) |
12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
1.6 | 166 | 628 | 0 |
1.84 | 136 | 515 | 1 |
2.13 | 112 | 424 | 2 |
2.52 | 95 | 360 | 3 |
2.79 | 52 | 197 | 4 |
3 | 0 | 0 | 4.8 |
SHIPPING INFORMATION
Unit Weight | 0.35 lbs（0.16 kg） |
Selling Unit Size (L x W x H) | 1.89 x 1.57" x 3.78" （4.8 x 4 x 9.6 cm） |
Selling Unit Weight | 0.4 lbs（0.18 kg） |
Master Carton Size (L x W x H) | 14.96" x 14.57" x 12.99" (38 x 37 x 33 cm) |
Master Carton Qty | 90 pcs |
Master Carton Weight | 35.27 lbs (16 kg) |
Master Carton Volume | 0.044 m³ |
