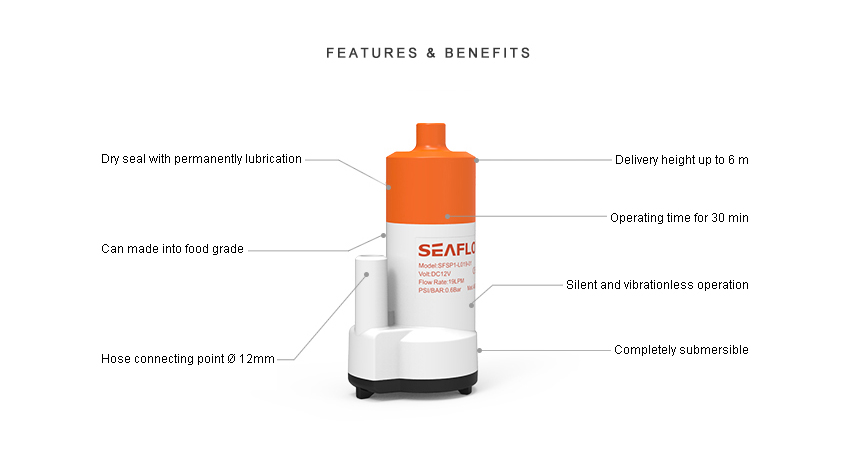

MORE FEATURES & BENEFITS
• Pumps up to 18 vertical feet
• 1/2" Outlet
• Ideal for backup battery sump
• Quiet and vibration less operation
• Completely submersible
• 18 AWG, 1 m long Leads
• Operating time for 30 min
• Dry seal with permanently lubrication
• Can made into food grade
• Delivery height up to 6m
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Max Draw | BRA | Wire Lead |
| SFSP1-L016-01 | 16 LPM | 12 V | 4.0 A | 0.6 bar | 3' (1 m) |

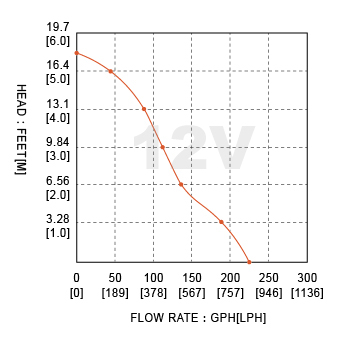

12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
3.9 | 224 | 848 | 0 |
4.1 | 185 | 700 | 1 |
4.3 | 132 | 500 | 2 |
4.5 | 116 | 439 | 3 |
4.7 | 86 | 325 | 4 |
4.85 | 44 | 167 | 5 |
5 | 0 | 0 | 5.5 |
SHIPPING INFORMATION
Unit Weight | 0.53 lbs（0.24 kg） |
Selling Unit Size (L x W x H) | 1.89" x 1.57" x 4.17" （4.8 x 4 x 10.6 cm） |
Selling Unit Weight | 0.57 lbs（0.26 kg） |
Master Carton Size (L x W x H) | 14.96" x 14.57" x 12.99" (38 x 37 x 33 cm) |
Master Carton Qty | 90 pcs |
Master Carton Weight | 35.27 lbs (16 kg) |
Master Carton Volume | 0.044 m³ |
