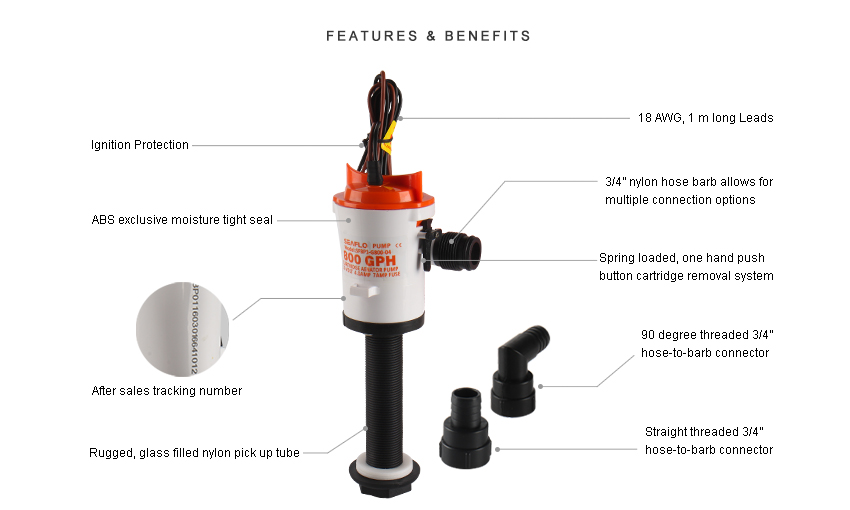

MORE FEATURES & BENEFITS
• Robust, easy click-in, replaceable motor
• Built-in through-hull
• Water cooled motor housing
• Flow: 350, 600 & 800gph in 12 volt version
• Marine grade blocked wiring
• Entirely submersible
• Quiet and vibration-less operation
• 18 AWG, 1 m long Leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Head | Wire Lead |
| SFBP1-G800-04 | 800 GPH | 12 V | 4.0 A | 7.2 A | 8.9' (2.7 m) | 3' (1 m) |

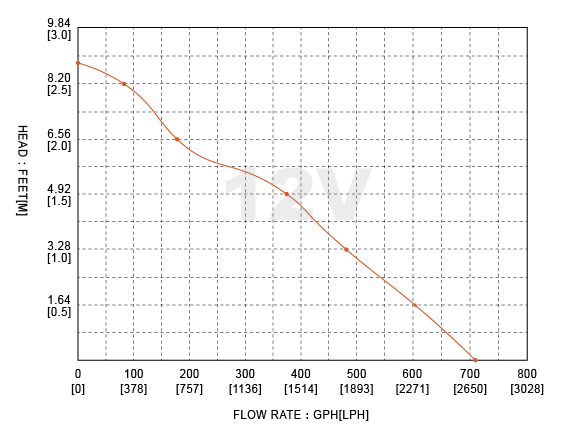

12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
3.25 | 709 | 2683 | 0 |
3.85 | 603 | 2282 | 0.5 |
4.62 | 486 | 1839 | 1 |
5.28 | 374 | 1415 | 1.5 |
6.33 | 186 | 704 | 2 |
7.05 | 88 | 333 | 2.5 |
7.2 | 0 | 0 | 2.7 |
SHIPPING INFORMATION
Unit Weight | 1.01 lbs (0.46 kg) |
Selling Unit Size (L x W x H) | 24.80" x 6.3"（Blister） (63 x 16 cm) |
Selling Unit Weight | 1.19 lbs (0.54 kg) |
Master Carton Size (L x W x H) | 25" x 13.78" x 13.39" (63.5 x 35 x 34 cm) |
Master Carton Qty | 20 pcs |
Master Carton Weight | 26.46 lbs (12 kg) |
Master Carton Volume | 0.076 m³ |
