MORE FEATURES & BENEFITS
• Robust, easy click-in, replaceable motor
• Built-in through-hull
• Water cooled motor housing
• Flow: 350, 600 & 800gph in 12 volt version
• Marine grade blocked wiring
• Entirely submersible
• Quiet and vibration-less operation
• 18 AWG, 1 m long Leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Head | Wire Lead |
| SFBP1-G600-05 | 600 GPH | 12 V | 3.0 A | 4.6 A | 6.9' (2.1 m) | 3' (1 m) |

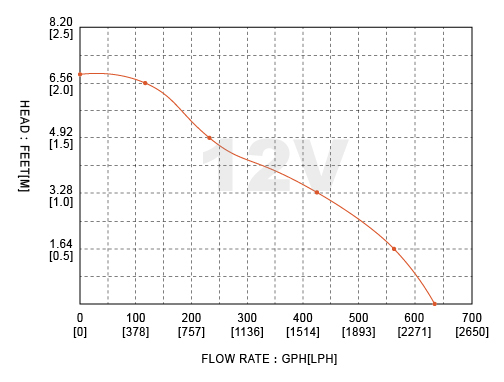

12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
| 2.08 | 633 | 2395 | 0 |
| 2.66 | 564 | 2134 | 0.5 |
| 3.25 | 426 | 1612 | 1 |
| 3.88 | 233 | 882 | 1.5 |
| 4.45 | 114 | 431 | 2 |
| 4.6 | 0 | 0 | 2.1 |
SHIPPING INFORMATION
Unit Weight | 1.08 lbs (0.49 kg) |
Selling Unit Size (L x W x H) | 21.06" x 11.81"（Blister） (53.5 x 30 cm) |
Selling Unit Weight | 1.37 lbs (0.62 kg) |
Master Carton Size (L x W x H) | 24.02" x 15.75" x 18.7" (61 x 40 x 47.5 cm) |
Master Carton Qty | 20 pcs |
Master Carton Weight | 26.46 lbs (12 kg) |
Master Carton Volume | 0.116 m³ |
