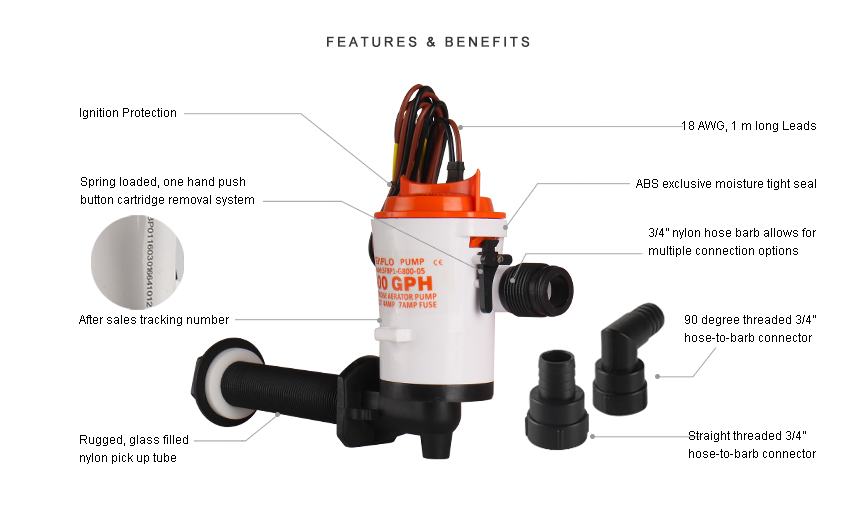

MORE FEATURES & BENEFITS
• Robust, easy click-in, replaceable motor
• Built-in through-hull
• Water cooled motor housing
• Flow: 350, 600 & 800gph in 12 volt version
• Marine grade blocked wiring
• Entirely submersible
• Quiet and vibration-less operation
• 18 AWG, 1 m long Leads
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G800-05 | 800 GPH | 12 V | 4.0 A | 6.8 A | 3' (1 m) |
12V | |||

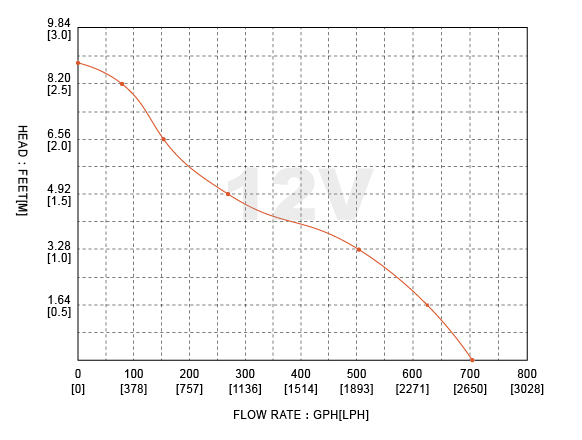

Current(A) | Flow | Head(M) | |
GPH | LPH | ||
3.08 | 704 | 2664 | 0 |
3.64 | 623 | 2358 | 0.5 |
4.14 | 505 | 1911 | 1 |
4.96 | 271 | 1026 | 1.5 |
5.53 | 155 | 587 | 2 |
6.42 | 78 | 295 | 2.5 |
6.8 | 0 | 0 | 2.7 |
SHIPPING INFORMATION
Unit Pump Weight | 1.08 lbs (0.49 kg) |
Selling Unit Size (L x W x H) | 21.06" x 11.81"（Blister） (53.5 x 30 cm) |
Selling Unit Weight | 1.37 lbs (0.62 kg) |
Master Carton Size (L x W x H) | 24.02" x 15.75" x 18.7" (61 x 40 x 47.5 cm) |
Master Carton Qty | 20 pcs |
Master Carton Weight | 26.46 lbs (12 kg) |
Master Carton Volume | 0.116 m³ |
