FEATURES & BENEFITS
MORE FEATURES & BENEFITS

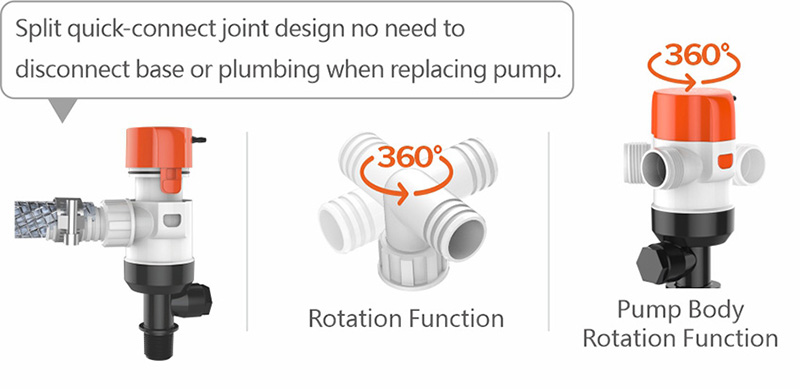

• Pump housing can rotate 360 degrees to allow positioning of the discharge outlet
• Discharge nozzle can be rotated 360 degrees for optimal installation
• Dual port fitting for optional washdown pump

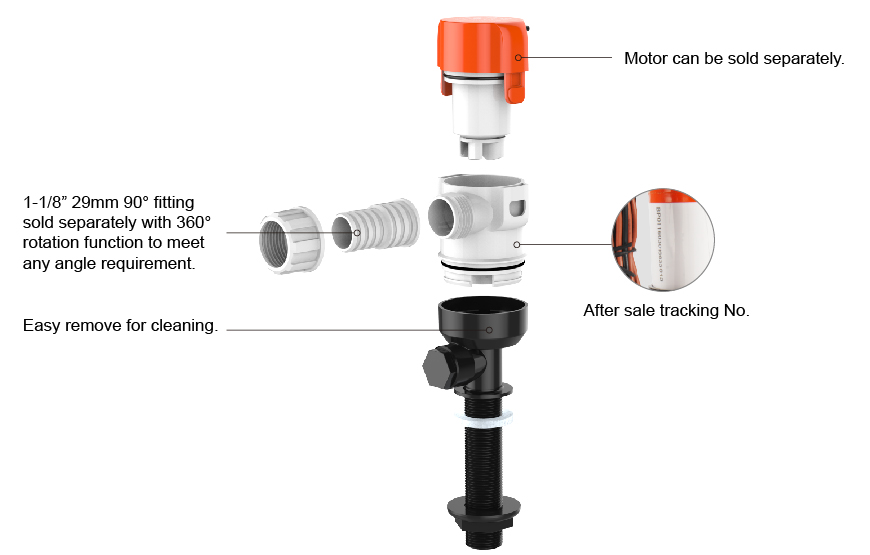

• Quick one hand "push button" motor cartridge removal system
• Includes removable discharge straight and elbow fittings
• CE, RoHS, ISO 8846, ISO 8849 standards
• Anti-Airlock protection
STANDARD PUMP CONFIGURATIONS

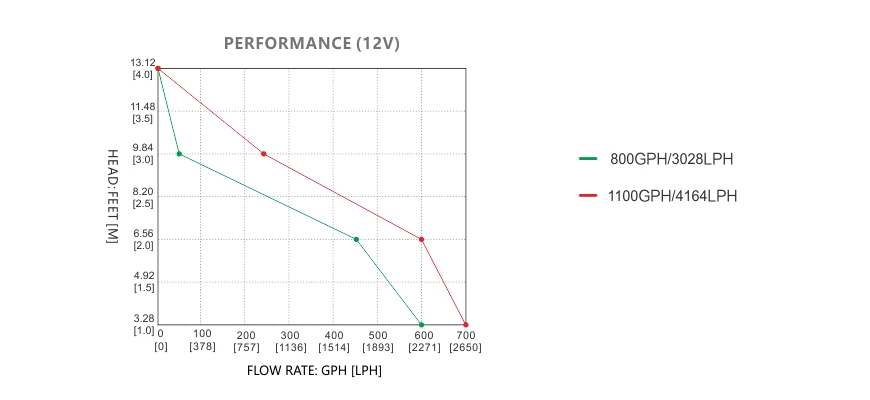

Model | Motor Model | Flow rate | Volts | Current | Head |
SFBP1-G1100-13D | SFMA1-G1100-13A | 1100GPH | 12V | 3.5A | 4.0m/12.0' |
SFBP2-G1100-13D | SFMA2-G1100-13A | 1100GPH | 24V | 1.8A | 4.0m/12.0' |
SHIPPING INFORMATION
Unit Weight | 1.21 lbs (0.55 kg) |
Selling Unit Size (L x W x H) | 7.01" x 2.72" x 6.69" (17.8 x 6.9 x 17 cm) |
Selling Unit Weight | 1.32 lbs (0.6 kg) |
Master Carton Size (L x W x H) | 18.9" x 17.32" x 16.14" (48 x 44 x 41 cm) |
Master Carton Qty | 24 pcs |
Master Carton Weight | 33.07 lbs（15 kg） |
Master Carton Volume | 0.087 m³ |
