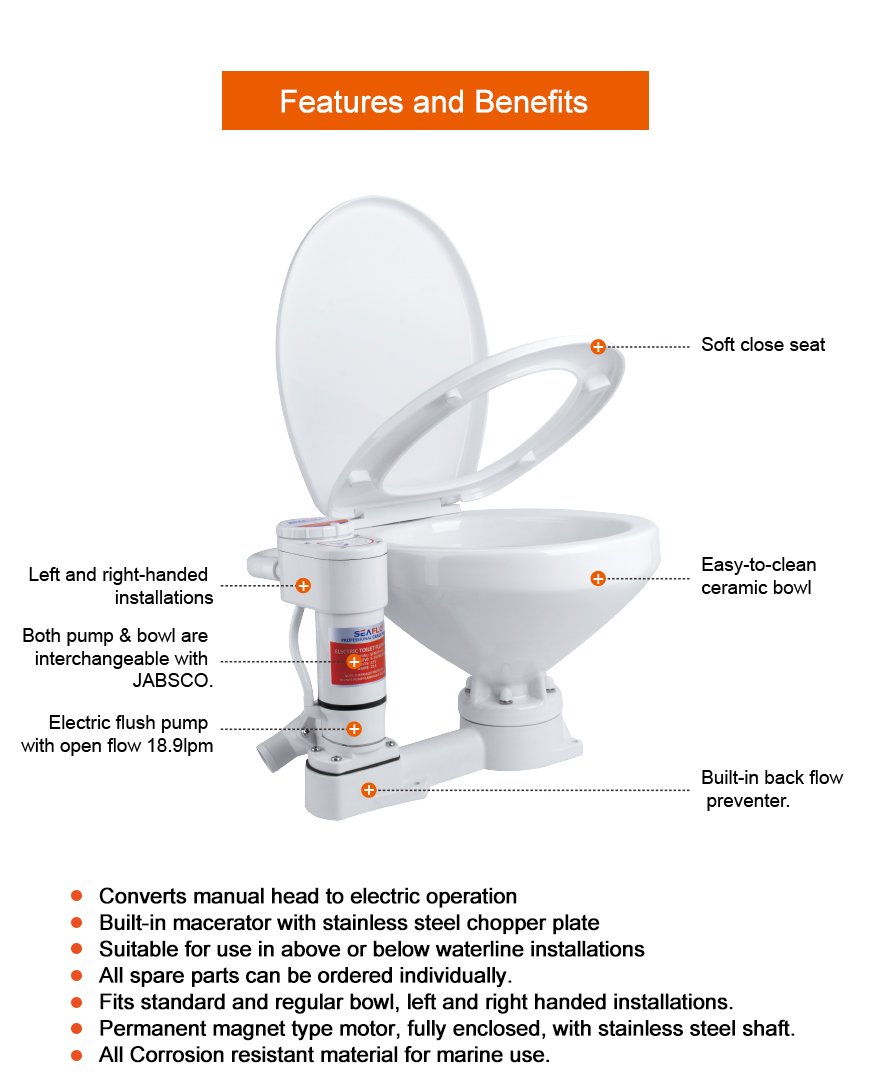

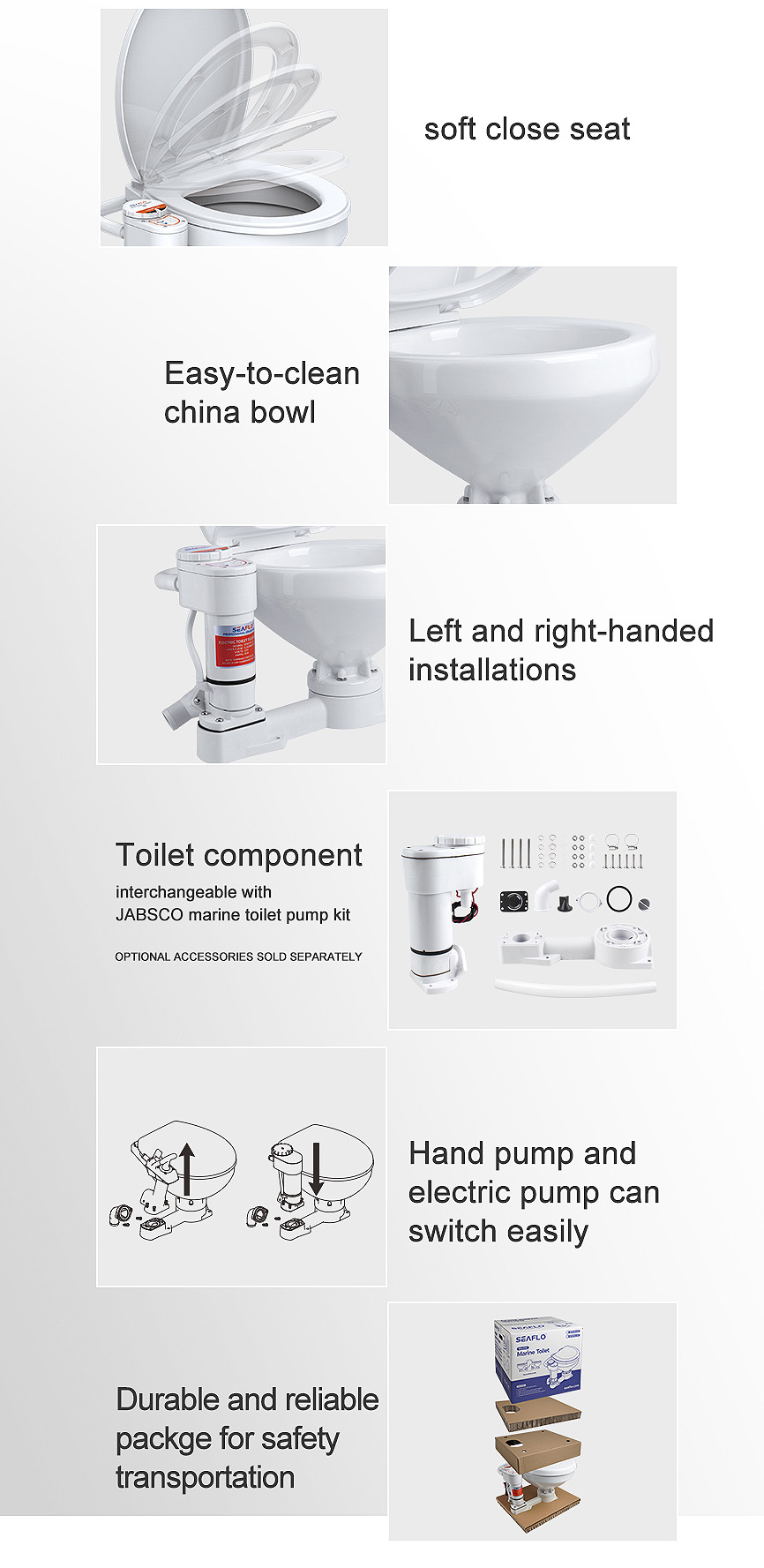

MORE FEATURES & BENEFITS
• Converts manual head to electric operation
• Simple to operate
• Suitable for use in above or below waterline installations
• Built-in macerator with stainless steel chopper plate
• Left and right-handed installations
• Wood seat with baked enamel finish for compact type only
• Soft close seat for regular type only
STANDARD CONFIGURATIONS
| Model | SFMTE1-02-R / SFMTE2-02-R |
| Type | Electric |
| Control Type | Switch Panel |
| Max Draw | 24A @12V 13A @24V |
| Size | Regular |
| Diameter | 3/4'' Inlet 1" Discharge |
| Material | Ceramic bowl, soft close seat |

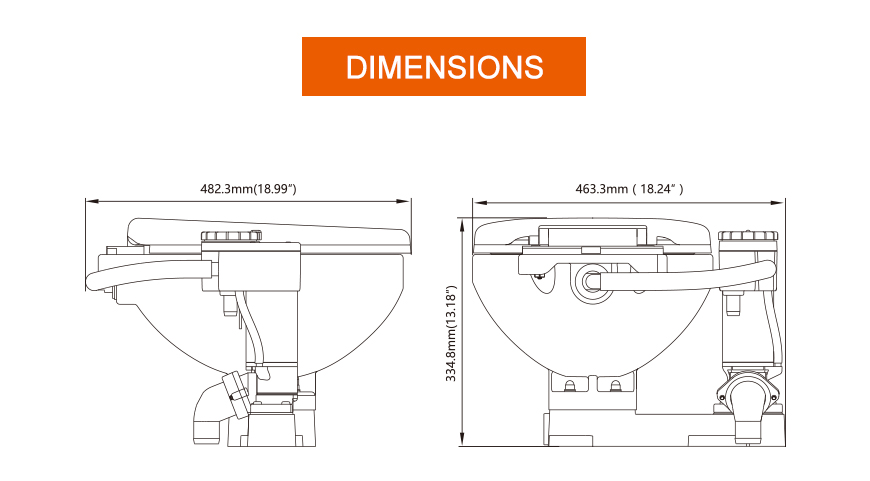

| Dimension(L*W*H) | 18.99'' 18.24" 13.18'' (482.3 * 463.3 * 334.8mm) |
SHIPPING INFORMATION
Master Carton Size (L x W x H) | 19.29''x 17.52''x 16.93'' (49 x 44.5 x 43 cm ) |
Master Carton Qty | 1 PCS |
Master Carton Weight | 37.83 lbs (17.16 kg) |
Master Carton Volume | 0.094 m³ |
