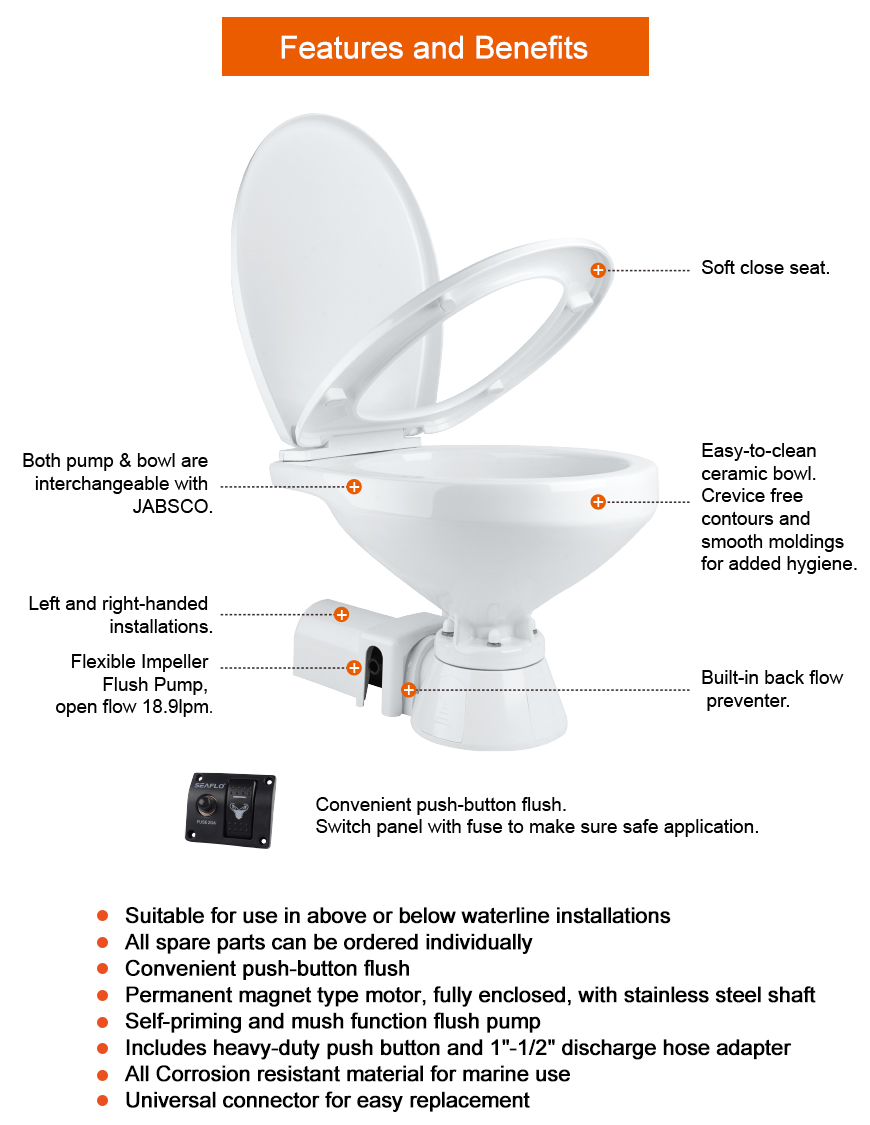

MORE FEATURES & BENEFITS
• Convenient push-button flush
• Easy-to-clean ceramic bowl
• Flexible impeller flush pump
• Permanent magnet type motor, fully enclosed, with stainless steel shaft
• Built-in back flow preventer
• All corrosion resistant material for marine use
• Wood seat with baked enamel finish for compact type only
• Soft close seat for regular type only
STANDARD CONFIGURATIONS
| Model | SFMTE1-01-R / SFMTE2-01-R |
| Type | Electric |
| Control Type | Switch Panel |
| Max Draw | 20A @12V 10A @24V |
| Size | Regular |
| Diameter | 3/4'' Inlet 1" Discharge |
| Material | Ceramic bowl, soft close seat |

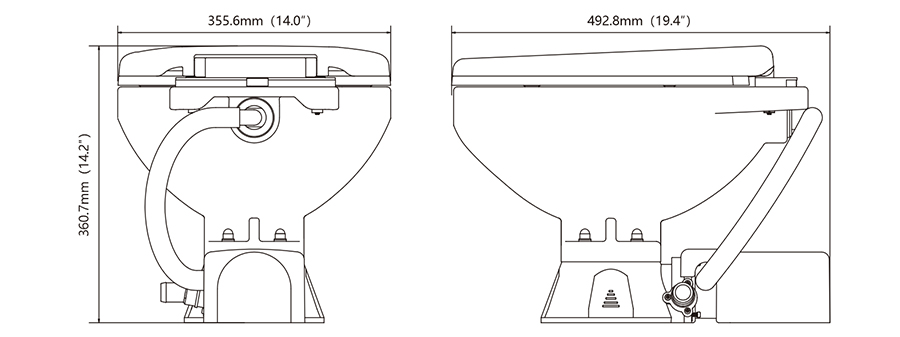

| Dimension(L*W*H) | 19.37''*14.01"*14.20'' 492.0 * 335.8 * 360.7 mm |
SHIPPING INFORMATION
Master Carton Size (L x W x H) | 19.29''x 17.52''x 16.93'' (49 x 44.5 x 43 cm ) |
Master Carton Qty | 1 PCS |
Master Carton Weight | 35.05 lbs (15.9 kg) |
Master Carton Volume | 0.094 m³ |
