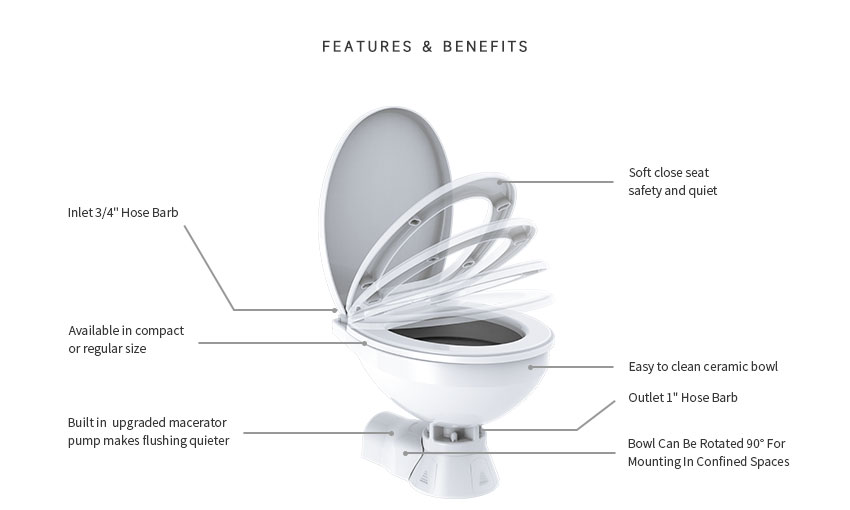

MORE FEATURES & BENEFITS
• Very quiet flush cycle - like a household toilet
• Single button flush actuator - with dual function water level control switch
• Can be plumbed to any pressurized water system that can provide a 3-1/2 GPM (13.5 LPM) flow rate

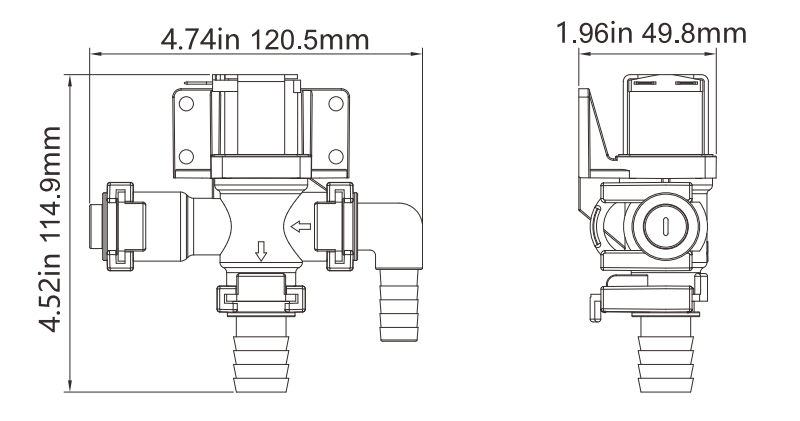

• Water control solenoid valve with anti-siphon breaker to prevent contamination of potable water supply

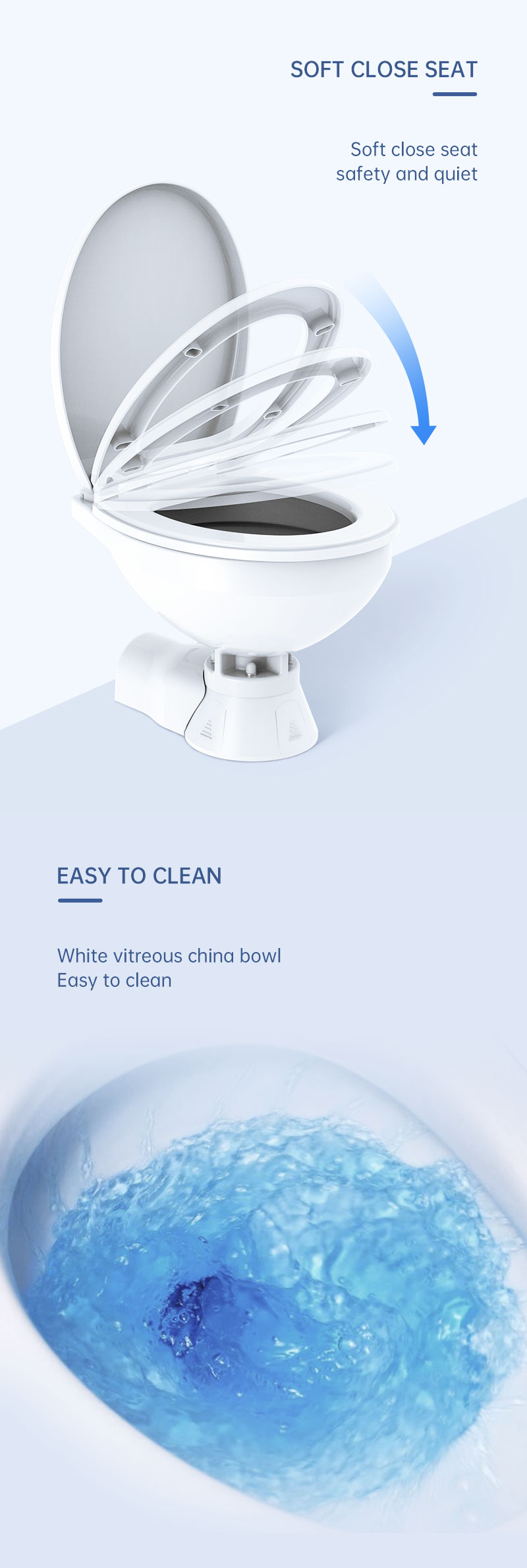

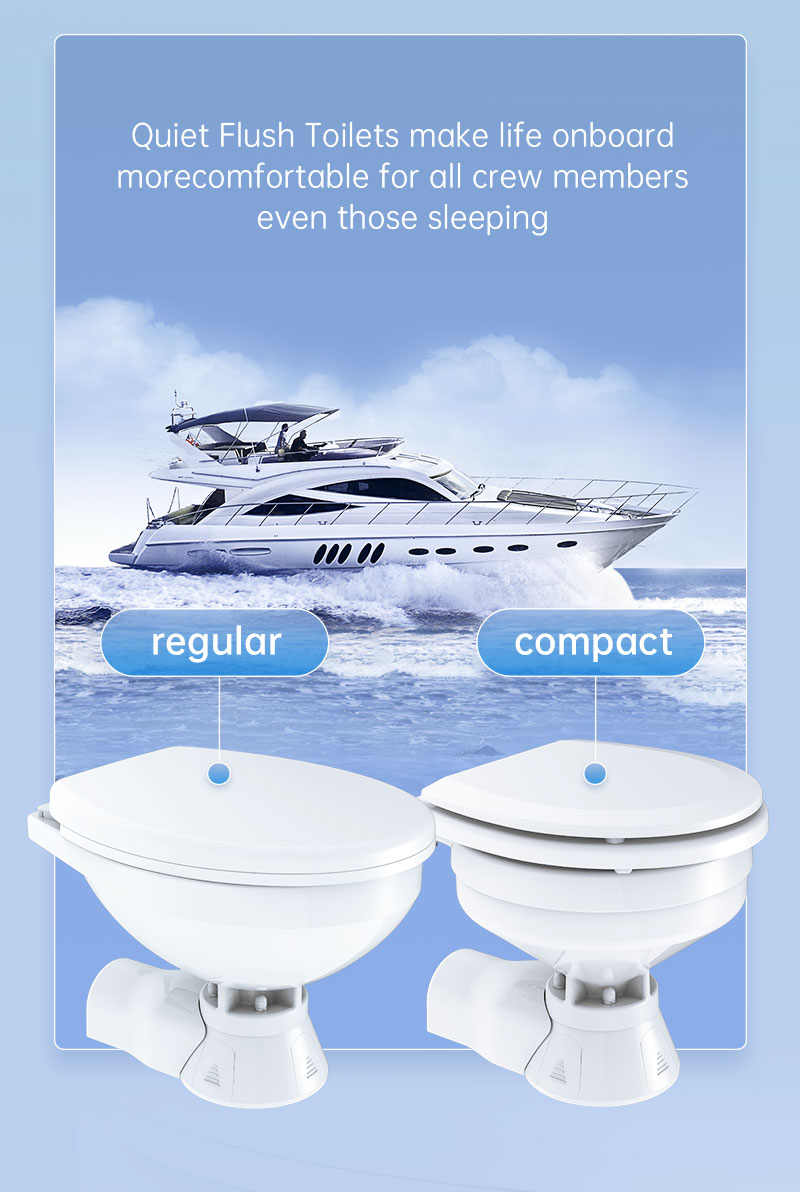

• White vitreous china bowl available in compact or comfortable household size

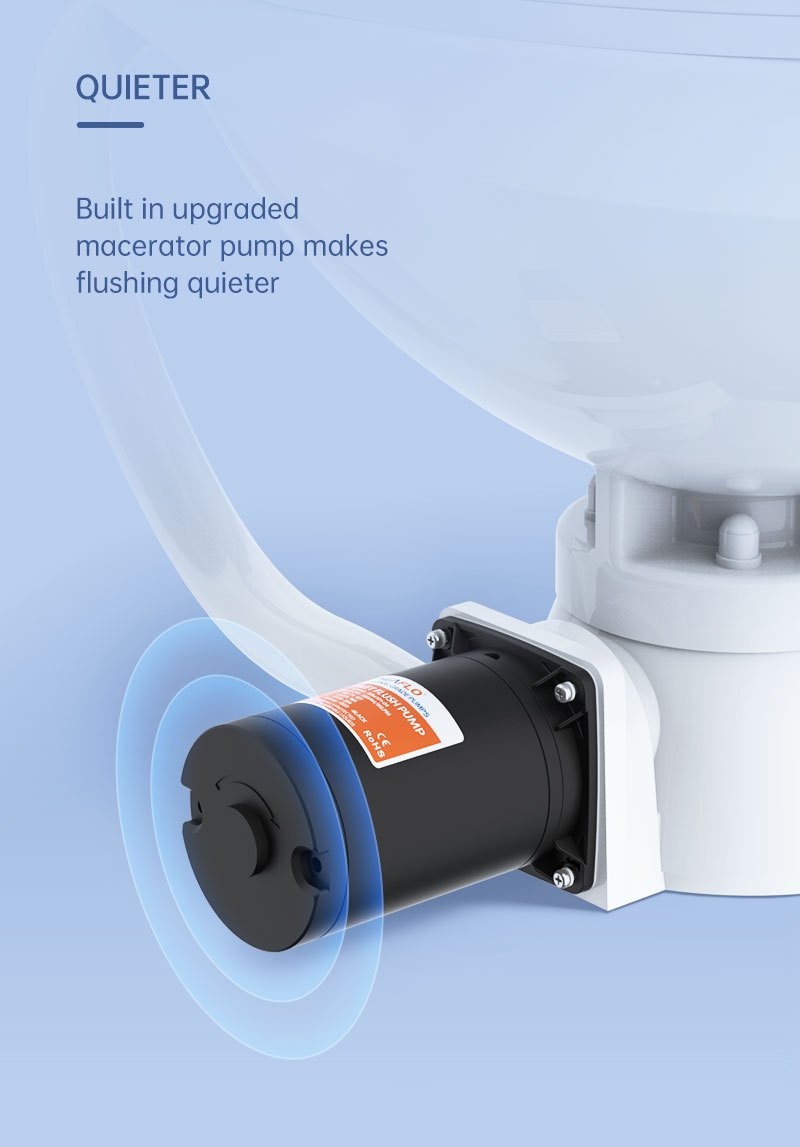

• Built in upgraded macerator pump makes flushing quieter
• All spare parts can be ordered individually
• All corrosion resistant material for marine use
STANDARD CONFIGURATIONS
Model | Voltage | Max Draw | port | Size | material | Features | Dimension(L*W*H) |

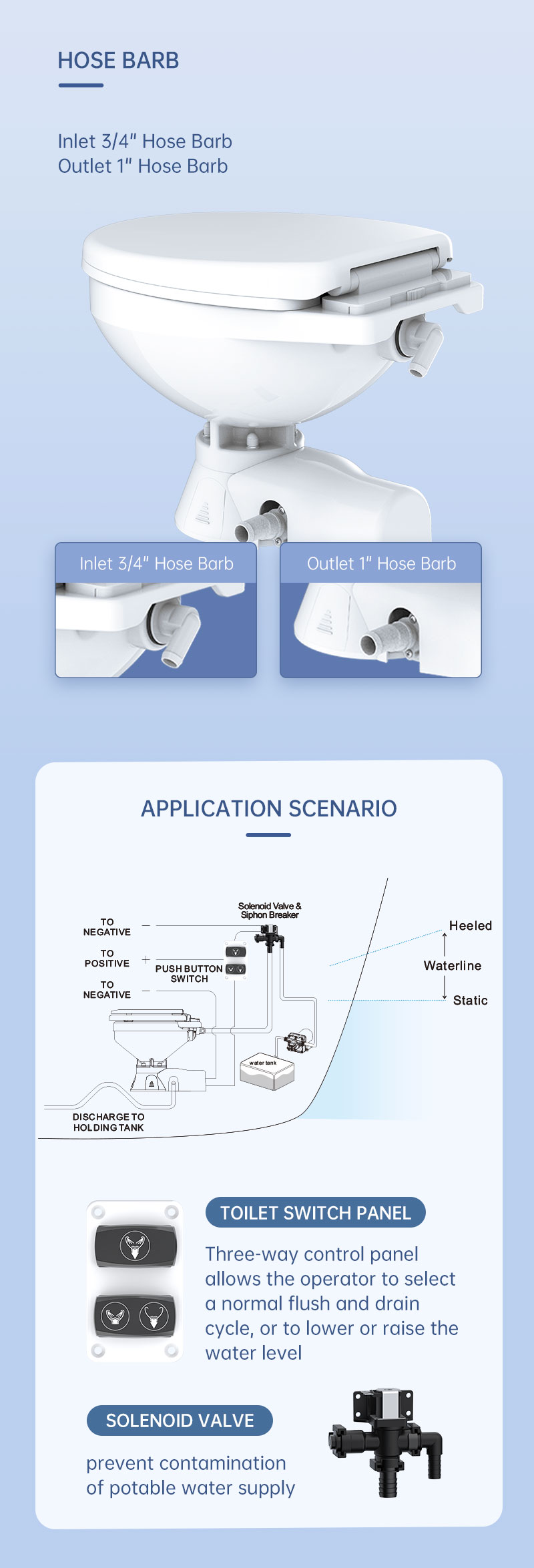

SFMTE1-03-R | 12 V | 16 A | Inlet 3/4" Hose Barb Outlet 1" Hose Barb |
Regular |

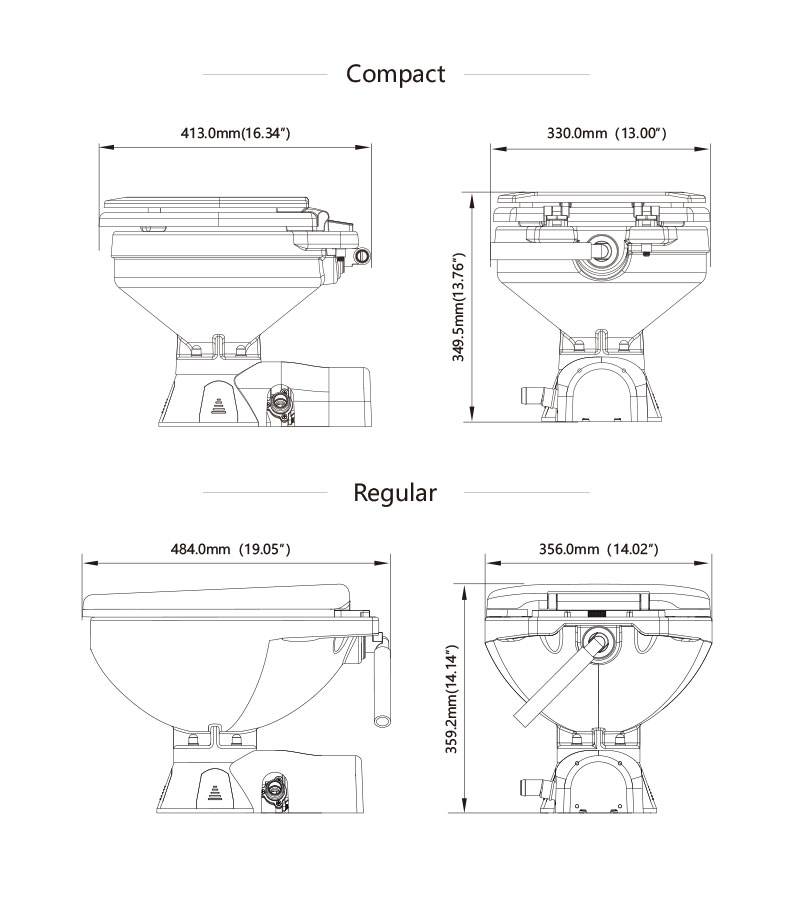

Ceramic bowl, Soft close seat | Built in macerator | 470X356X355mm 18.5"x14.01"x13.97" |
SFMTE2-03-R | 24 V | 8 A |
SHIPPING INFORMATION
Master Carton Size (L x W x H) | 545*430*400（mm） |
Master Carton Qty | 1 pcs |
Master Carton Weight | 34.39 lbs /15.6 kg |
Master Carton Volume | 0.094 m³ |
