STANDARD CONFIGURATIONS
| PARAMETER | ||
| Model | SFMTP1-02 | SFMTP2-02 |
| Voltage | 12 V | 24 V |
| Open Flow | 5.0 GPM / 18.9 LPM | |

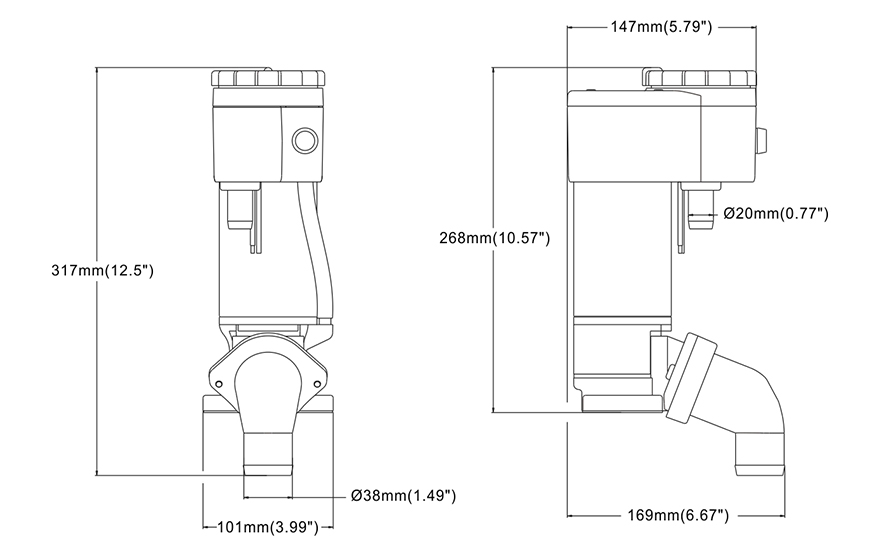

| Dimension | 11.8" x 7.5" x 4.7" | |
| Diameter | 3/4" Inlet 1-1/2" Discharge | |
| Draw | 24A | 13A |
SHIPPING INFORMATION
Unit Weight | 6.06 lbs (2.75 kg) |
Selling Unit Size (L x W x H) | 12.40'' x 7.48'' x 5.51'' (31.5 x 19.0 x 14.0 cm ) |
Selling Unit Weight | 7.34 lbs (3.3 kg) |
Master Carton Size (L x W x H) | 23.43'' x 13.19'' x 12.20'' (59.5 x 33.5 x 31.0 cm ) |
Master Carton Qty | 6 PCS |
Master Carton Weight | 45.19 lbs (20.5 kg) |
Master Carton Volume | 0.062 m³ |
