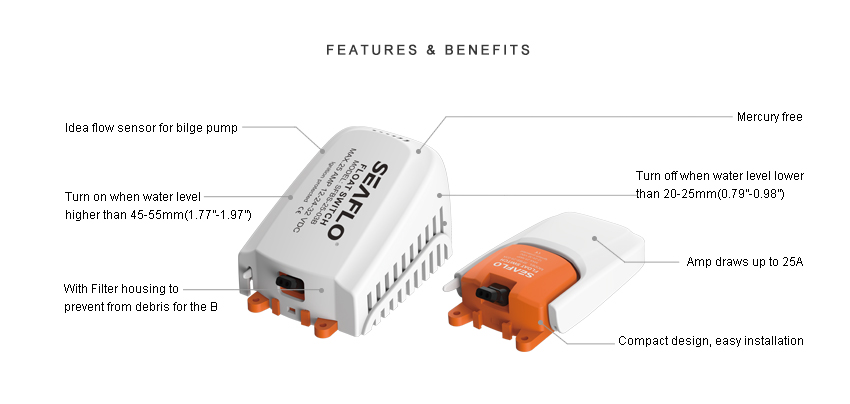

MORE FEATURES & BENEFITS
• Larger float and drive structure for better stability
• Amp draws up to 25 A
• Idea flow sensor for bilge pump
• Mercury free
• Compact design, easy installation
• Strainer housing protects switch from debris
• Turn on when water level higher than 45-55 mm(1.77''-1.97'')
• Turn off when water level lower than 20-25 mm(0.79''-0.98'')
STANDARD CONFIGURATIONS

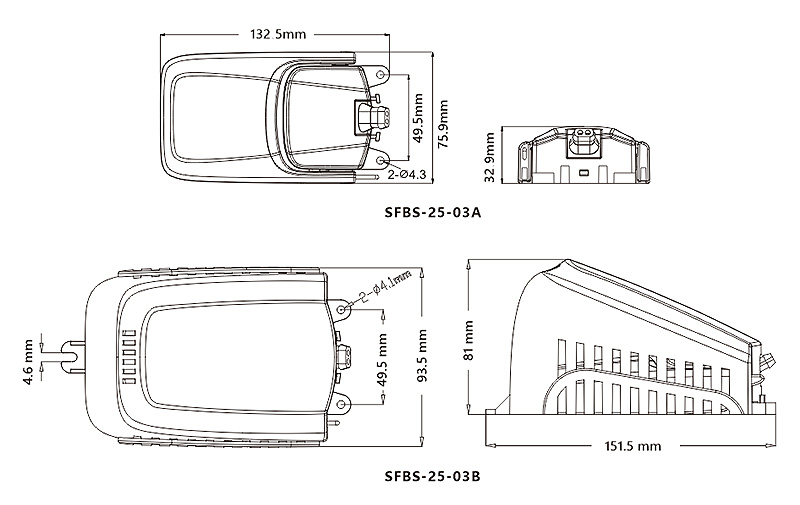

| Model | Max Amps 12Volts | Filter Housing | Wire Lead | Wire Gauge Size | N.W. |
SFBS-25-03A | 25 A | NO | 1 M | 14AWG | 120 g |
| SFBS-25-03B | 25 A | YES | 1 M | 14AWG | 190 g |
SHIPPING INFORMATION
A section
Unit Weight | 0.31 lbs (0.14 kg) |
Master Carton Size (L x W x H) | 20.87" x 17.52"x 12.99" (53 x 44.5 x 33 cm) |
Master Carton Qty | 60 pcs |
Master Carton Weight | 26.46 lbs (12 kg) |
Master Carton Volume | 0.078 m³ |
B section
Unit Weight | 0.49 lbs (0.22 kg) |
Master Carton Size (L x W x H) | 24.37"x 12.95"x 11.81" (61.9 x 32.9 x 30 cm) |
Master Carton Qty | 30 pcs |
Master Carton Weight | 20.28 lbs (9.2 kg) |
Master Carton Volume | 0.061 m³ |
