FEATURES & BENEFITS
• Consists of an electric field bilge switch and a 95 dB alarm
• Detects water and sends a signal (3 seconds delay) to the alarm
• Precision switch automatically activates and shuts off alarms when water reaches specific levels
• No moving parts, totally sealed solid state electronics and field detectors
• 3 second delay prevents false starts

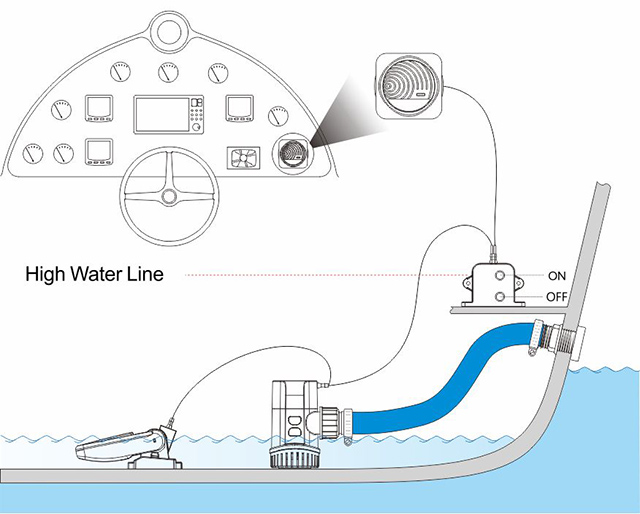

• Switch activates the Bilge Pump at a 41mm/1.6" fluid level and deactivates at a 9.5mm/0.37" fluid level
STANDARD CONFIGURATIONS
Model Number | Voltage | Current | Alarm volume | N.W. | Wire Gauge Size /length |
SFWAS1-20-01 | 12V DC | 20 Amps.Max | ≥95DB | 0.2KG | 18AWG/1000mm (Switch) 28AWG/150mm (Alarm) |
SFWAS2-10-01 | 24V DC | 10 Amps.Max | ≥95DB | 0.2KG |
SHIPPING INFORMATION
Selling Unit Size (L x W x H) | 7.91" x 5.27" x 2.95" (20.10 x 13.40 x 7.50 cm) |
Selling Unit Weight | 0.50 lbs (0.23 kg) |
Master Carton Size (L x W x H) | 19.88" x 13.58" x 17.12" |
Master Carton Qty | 48 pcs |
Master Carton Weight | 24.03 lbs (10.90 kg) |
Master Carton Volume | 0.094 m³ |
