FEATURES & BENEFITS

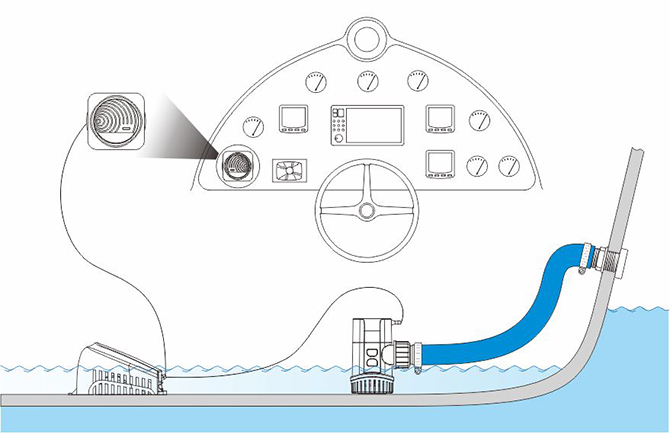

• A safety reminder device integrating vision and hearing.

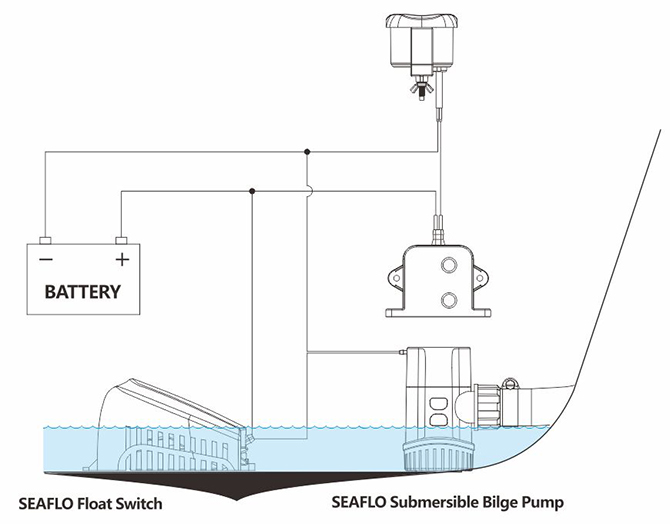

• Consists of a float switch and a 95 DB alarm.
• Allows an unarmed compartment to be constantly monitored.
• Rated to handle pumps up to 20A at 12V or 10A at 24V.
• Turn on when water level higher than 45-55mm(1.77"-1.97").
• Turn off when water level lower than 20-25mm(0.79"-0.98").
• The float switch comes with a filter housing to keep debris out.
• 2-year global warranty
STANDARD CONFIGURATIONS
Model Number | Voltage | Current | Alarm volume | N.W. | Wire Gauge Size /length |
SFWAS1-20-02 | 12V DC | 20 Amps.Max | ≥95DB | 0.3KG | 16AWG/1000mm (Switch) 28AWG/150mm (Alarm) |
SFWAS2-10-02 | 24V DC | 10 Amps.Max | ≥95DB | 0.3KG |
SHIPPING INFORMATION
Selling Unit Size (L x W x H) | 10.62" x3.81" x 2.51" (27.00 x 9.70 x 6.40 cm) |
Selling Unit Weight | 0.90 lbs (0.41 kg) |
Master Carton Size (L x W x H) | 24.21" x 10.43" x 23.22" |
Master Carton Qty | 28 pcs |
Master Carton Weight | 25.35 lbs (11.50 kg) |
Master Carton Volume | 0.083 m³ |
