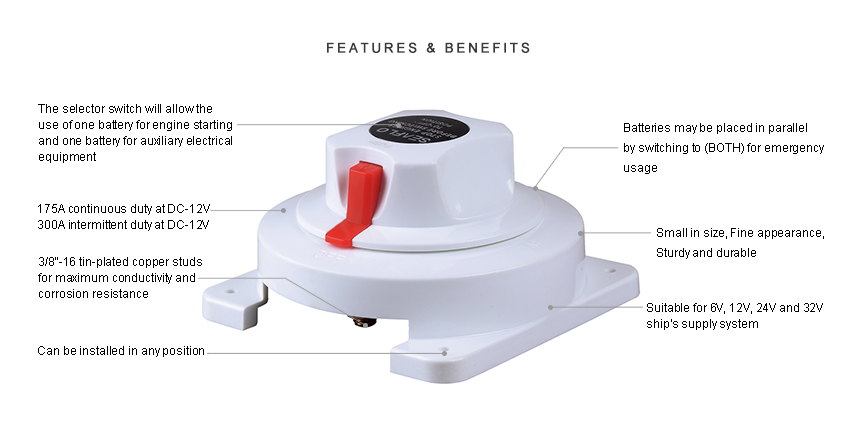

MORE FEATURES & BENEFITS
• The selector switch will allow the use of one battery for engine starting and one battery for auxiliary electrical equipment
• Batteries may be placed in parallel by switching to (BOTH) for emergency usage
• Small in size, Fine appearance, Sturdy and durable
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion
• resistance Can be installed in any position
• 175A continuous duty at DC-12V
• 300A intermittent duty at DC-12V
• Suitable for 6V, 12V, 24V and 32V ship's supply system
STANDARD CONFIGURATIONS
| Model | Max. Volt | Amp Draw | Max Amp Draw | Switch Position |
| SFCBS-175-402 | 6-12-24-32 V | 175A | 300 A | 3 |
SHIPPING INFORMATION
Unit Weight | 1.06 lbs (0.48 kg) |
Selling Unit Size (L x W x H) | 5.51" x 5.51" x 3.27" (14 x 14 x 8.3 cm) |
Selling Unit Weight | 0.68 lbs (0.31 kg) |
Master Carton Size (L x W x H) | 22.95" x 11.69" x 11.22" |
Master Carton Qty | 24 pcs |
Master Carton Weight | 28.66 lbs (13 kg) |
Master Carton Volume | 0.049 m³ |
