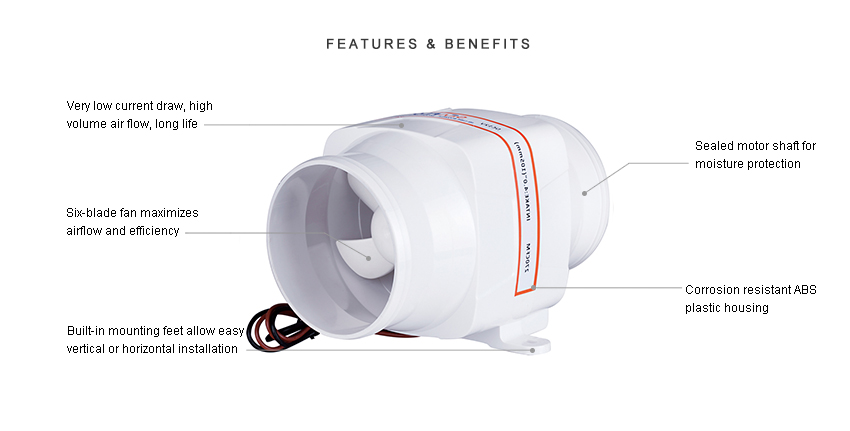

MORE FEATURES & BENEFITS
• Meets or exceeds ISO 8846 certification
• Built-in mounting feet allows easy vertical or horizontal installation
• Very low current draw, high volume air flow, long life
• Four/Six-blade fan maximizes airflow and efficiency
• Sealed motor shaft for moisture protection
• Corrosion resistant ABS plastic housing
STANDARD CONFIGURATIONS
| Model | Voltage | Air Flow (cfm/cmh) | Max Draw (A) | Fuse (A) | Intake Pipe Dia |
| SFIB1-130-01 | 12V | 130/220 | 2.5A | 5.0A | 3"/76 |
| SFIB2-130-01 | 24V | 130/220 | 1.3A | 3.0A | 3"/76 |
SHIPPING INFORMATION
Unit Weight | 1.1 lbs (0.5 kg) |
Selling Unit Size (L x W x H) | 8.46" x 5.39" x 4.72 " (21.5 x 13.7 x 12 cm) |
Selling Unit Weight | 1.35 lbs (0.61 kg) |
Master Carton Size (L x W x H） | 25.98" x 14.5" x 10.63" (66 x 29.2 x 27 cm) |
Master Carton Qty | 12 pcs |
Master Carton Weight | 16.31 lbs (7.4 kg) |
Master Carton Volume | 0.052 m³ |
