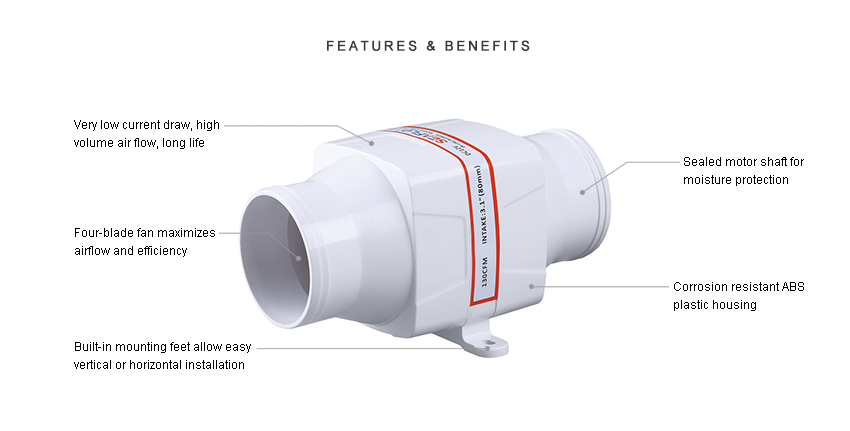

MORE FEATURES & BENEFITS
• Meets or exceeds ISO 8846 certification
• Built-in mounting feet allows easy vertical or horizontal installation
• Very low current draw, high volume air flow, long life
• Four/Six-blade fan maximizes airflow and efficiency
• Sealed motor shaft for moisture protection
• Corrosion resistant ABS plastic housing
STANDARD CONFIGURATIONS
| Model | Voltage | Air Flow (cfm/cmh) | Max Draw (A) | Fuse (A) | Intake Pipe Dia |
| SFIB1-270-02 | 12V | 270/456 | 6.0A | 10.0A | 4"/102 |
| SFIB2-270-02 | 24V | 270/456 | 3.0A | 5.0A | 4"/102 |
SHIPPING INFORMATION
Unit Weight | 1.68 lbs (0.76 kg) |
Selling Unit Size (L x W x H) | 8.15"x 6.06" x 5.59" (20.7 x 15.4 x 14.2 cm) |
Selling Unit Weight | 1.96 lbs (0.89 kg) |
Master Carton Size (L x W x H) | 25.2" x 12.8" x 12.4 " (64 x 32.5 x 31.5 cm) |
Master Carton Qty | 12 pcs |
Master Carton Weight | 22.23 lbs ( 10.1 kg) |
Master Carton Volume | 0.066 m³ |
