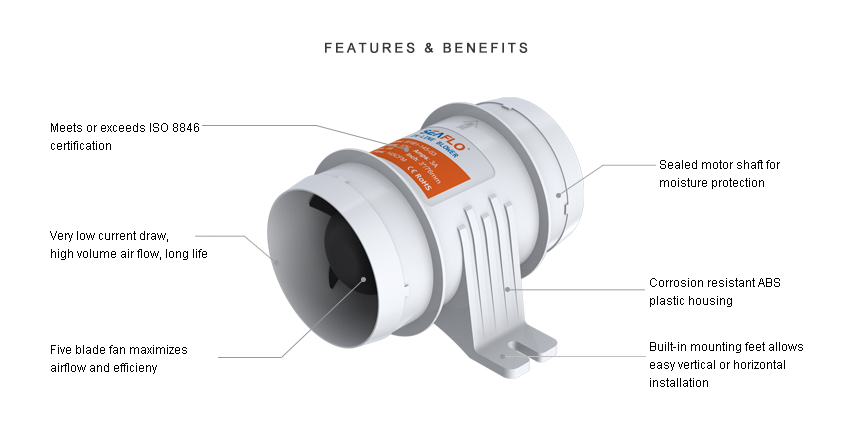

MORE FEATURES & BENEFITS
• Meets or exceeds ISO 8846 certification
• Built-in mounting feet allows easy vertical or horizontal installation
• Very low current draw, high volume air flow, long life
• Five blade fan maximizes airflow and efficiency
• Sealed motor shaft for moisture protection
• Corrosion resistant ABS plastic housing
• Smaller size for any limited area
STANDARD CONFIGURATIONS
| Model | Voltage | Air Flow (cfm/cmh) | Max Draw (A) | Fuse (A) | Intake Pipe Dia |
| SFIB1-145-03 | 12V | 145/247 | 3.0A | 5.0A | 3"/76 mm |
| SFIB2-145-03 | 24V | 145/247 | 1.5A | 2.5A | 3"/76 mm |
SHIPPING INFORMATION
Unit Weight | 0.87 lbs (0.395 kg) |
Selling Unit Size (L x W x H) | 6.69" x 5.24"x 5.04" (17 x 13.3 x 12.8 cm) |
Selling Unit Weight | 1.07 lbs (0.485 kg) |
Master Carton Size (L x W x H) | 22.80" x 16.42" x 13.11" (57.9 x 41.7x 33.3 cm) |
Master Carton Qty | 36 pcs |
Master Carton Weight | 34.39 lbs (15.6 kg) |
Master Carton Volume | 0.08 m³ |
