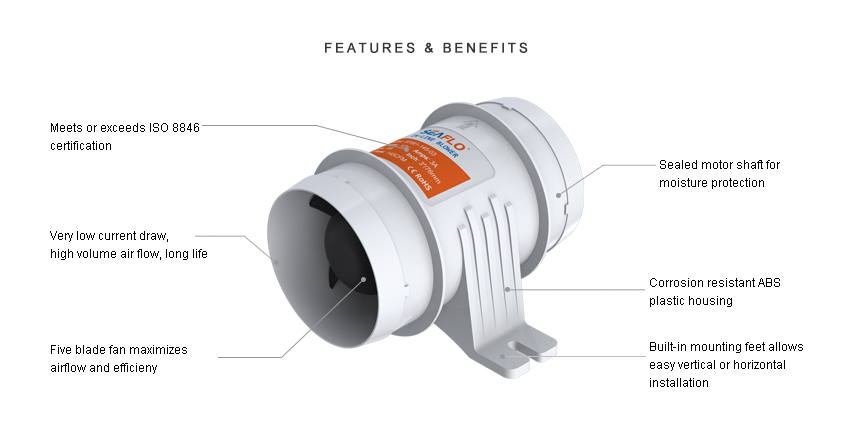

MORE FEATURES & BENEFITS
• Meets or exceeds ISO 8846 certification
• Built-in mounting feet allows easy vertical or horizontal installation
• Very low current draw, high volume air flow, long life
• Five blade fan maximizes airflow and efficiency
• Sealed motor shaft for moisture protection
• Corrosion resistant ABS plastic housing
• Smaller size for any limited area
STANDARD CONFIGURATIONS
| Model | Voltage | Air Flow (cfm/cmh) | Max Draw (A) | Fuse (A) | Intake Pipe Dia |
| SFIB1-235-04 | 12V | 235/400 | 4.0A | 7.0A | 4"/102 mm |
| SFIB2-235-04 | 24V | 235/400 | 2.0A | 4.0A | 4"/102 mm |
SHIPPING INFORMATION
Unit Weight | 0.87 lbs (0.395kg) |
Selling Unit Size (L x W x H) | 6.69" x 5.24" x 5.04" (17.0 x 13.3 x 12.8 cm) |
Selling Unit Weight | 1.07 lbs (0.485 kg) |
Master Carton Size (L x W x H) | 20.87" x 16.46" x 16.46" (53.0x 41.8x 41.8 cm) |
Master Carton Qty | 27 pcs |
Master Carton Weight | 30.64 lbs (13.9 kg) |
Master Carton Volume | 0.093 m³ |
