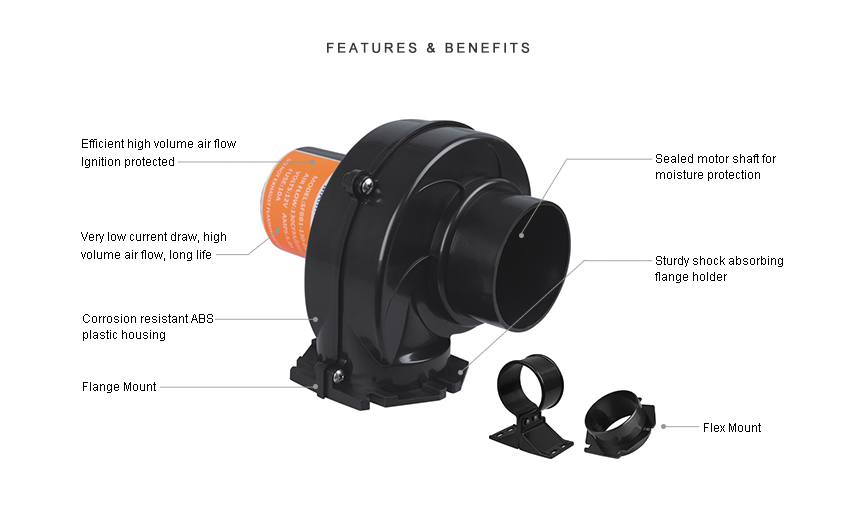

MORE FEATURES & BENEFITS
• Dual Mounting Options
• Efficient high volume air flow
• Very low current draw, long life

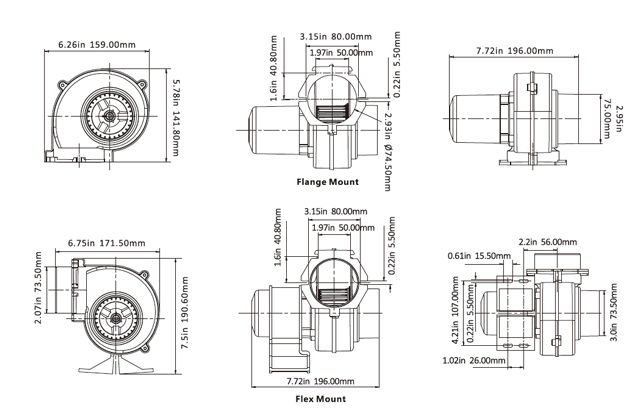

• Flex Mount or Flange Mount
• Sealed motor shaft for moisture protection
• Corrosion resistant ABS plastic housing
• Ignition protected
• CE conforms with EN 50014-1, EN N 61000-3-3
STANDARD CONFIGURATIONS
| Model | Voltage | Air Flow | Max Draw (A) | Fuse |
| SFBB1-130-01 | 12V | 130/220 | 2.5A | 5A |
| SFBB2-130-01 | 24V | 130/220 | 1.5A | 3A |
SHIPPING INFORMATION
Unit Weight | 1.83 lbs (0.83 kg) |
Selling Unit Size (L x W x H) | 7.48" x 11.02" x 7.99" (19 x 28 x 20.3 cm) |
Selling Unit Weight | 2.2 lbs (1 kg) |
Master Carton Size (L x W x H) | 22.05"x 15.75" x 9.06" (56 x 40 x 23 cm) |
Master Carton Qty | 6 pcs |
Master Carton Weight | 14.95 lbs (6.78 kg) |
Master Carton Volume | 0.052 m³ |
