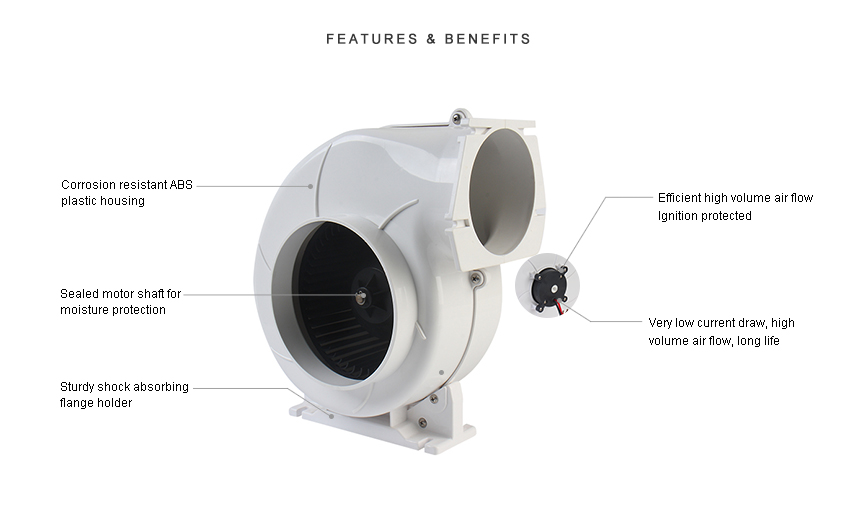

MORE FEATURES & BENEFITS
• Efficient high volume air flow
• Very low current draw, long life

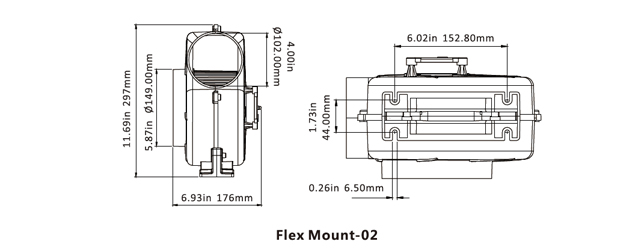

• Available in either Flex Mount or Flange Mount
• Sealed motor shaft for moisture protection
• Corrosion resistant ABS plastic housing
• Ignition protected
• CE conforms with EN 50014-1, EN N 61000-3-3
STANDARD CONFIGURATIONS
| Model | Voltage | Air Flow | Max Draw (A) | Fuse |
| SFBB1-320-02 | 12V | 320/550 | 11.0A | 16.0A |
| SFBB2-320-02 | 24V | 320/550 | 6.0A | 10.0A |
SHIPPING INFORMATION
Unit Weight | 4.72 lbs (2.14 kg) |
Selling Unit Size (L x W x H) | 11.73" x 6.3"x 7.24" (29.8 x 16 x 18.4 cm) |
Selling Unit Weight | 5.74 lbs (2.61 kg) |
Master Carton Size (L x W x H) | 21.14" x 12.2" x 15.67" (53.7 x 31 x 39.8 cm) |
Master Carton Qty | 4 pcs |
Master Carton Weight | 25.13 lbs (11.4 kg) |
Master Carton Volume | 0.066 m³ |
