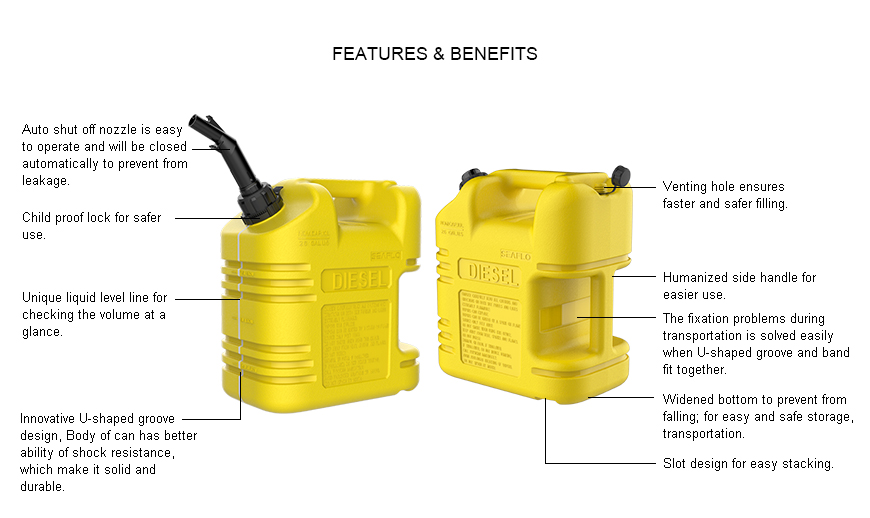

MORE FEATURES & BENEFITS
• Auto shut off nozzle is easy to operate and will be closed automatically to prevent from leakage
• Child proof lock for safer use
• Unique liquid level line for checking the volume at a glance
• Innovative U-shaped groove design, Body of can has better ability of shock resistance, which make it solid and durable
• Venting hole ensures faster and safer filling
• Humanized side handle for easier use
• The fixation problems during transportation is solved easily when U-shaped groove and band fit together.
• Widened bottom to prevent from falling; for easy and safe storage, transportation
• Slot design for easy stacking
• Meet Australian standard of AS/NZS 2906:2001
• Meet requirements of EPA & CARB certification
STANDARD CONFIGURATIONS
| Model | Capacity | Length | Width | Height | Weight (DRY) | Fuel | Color |
| SFDT-05-02 | 5L | 265mm | 138mm | 242mm | 0.8KG | Diesel | Yellow |
| SFDT-10-02 | 10L | 290mm | 184mm | 325mm | 1.3KG | Diesel | Yellow |
| SFDT-20-02 | 20L | 345mm | 224mm | 395mm | 1.8KG | Diesel | Yellow |
SHIPPING INFORMATION
Volume（L） | 5L | 10L | 20L |
Master Carton Size (L x W x H) | 21.46" x 16.73" x 10.04" (54.5 x 42.5 x 25.5 cm) | 23.43" x 14.96" x 13.19" (59.5 x 38 x 33.5 cm) | 18.11" x 13.98" x 15.94" (46 x 35.5 x 40.5 cm) |
Master Carton Weight/Qty | 4.2 kg / 6 pcs | 4.8 kg / 4 pcs | 3.5 kg / 2 pcs |
Master Carton Volume | 0.059 m³ | 0.076 m³ | 0.066 m³ |
