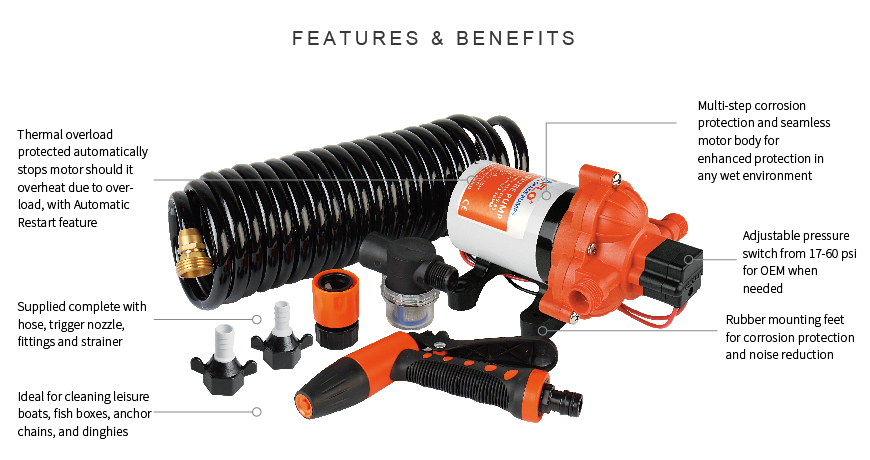

MORE FEATURES & BENEFITS
• Positive displacement pump
• Can run dry
• Quiet operation
• Demand pump
• Easy connect fittings
• Ignition protected
• Industry standard mount pattern
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow （GPM/LPM） | Max Draw | Shut-off Pressure （PSI/BAR) |
| SFWP1-030-070-33 | 12V | 3.0 / 11.3 | 18.0A | 70 / 4.8 |
| SFWP2-030-070-33 | 24V | 3.0 / 11.3 | 9.0A | 70 / 4.8 |

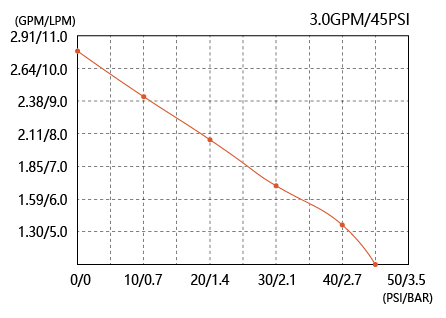

3.0 GPM
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM | AMPS |
| 0 | 0 | 2.78 | 10.54 | 4.24 |
| 10 | 0.69 | 2.41 | 9.12 | 5.01 |
| 20 | 1.38 | 2.06 | 7.80 | 5.95 |
| 30 | 2.07 | 1.69 | 6.40 | 6.43 |
| 40 | 2.72 | 1.37 | 5.20 | 6.69 |
| 45 | 3.11 | 0 | 0 | 6.74 |
SHIPPING INFORMATION
Unit Weight | 6.75 lbs（3.06 kg） |
Selling Unit Size (L x W x H) | 12.01" x 10.04" x 5.71" （30.5 x 25.5 x14.5 cm） |
Selling Unit Weight | 7.85 lbs（3.56 kg） |
Master Carton Size (L x W x H) | 21.06 " x 12.8 " x 12.6 " (53.5 x 32.5 x 32 cm) |
Master Carton Qty | 4 pcs |
Master Carton Weight | 28.22 lbs (12.8 kg) |
Master Carton Volume | 0.056 m³ |
